Home >> Ford >> 2002 >> Escape 3.0 1, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake Control System >> Diagnosis And Testing >> Anti-Lock Control >> Pinpoint Tests >> Pinpoint Test F: The Yellow Abs Warning Indicator Does Not Self-Check

Pinpoint Test F: The Yellow Abs Warning Indicator Does Not Self-Check

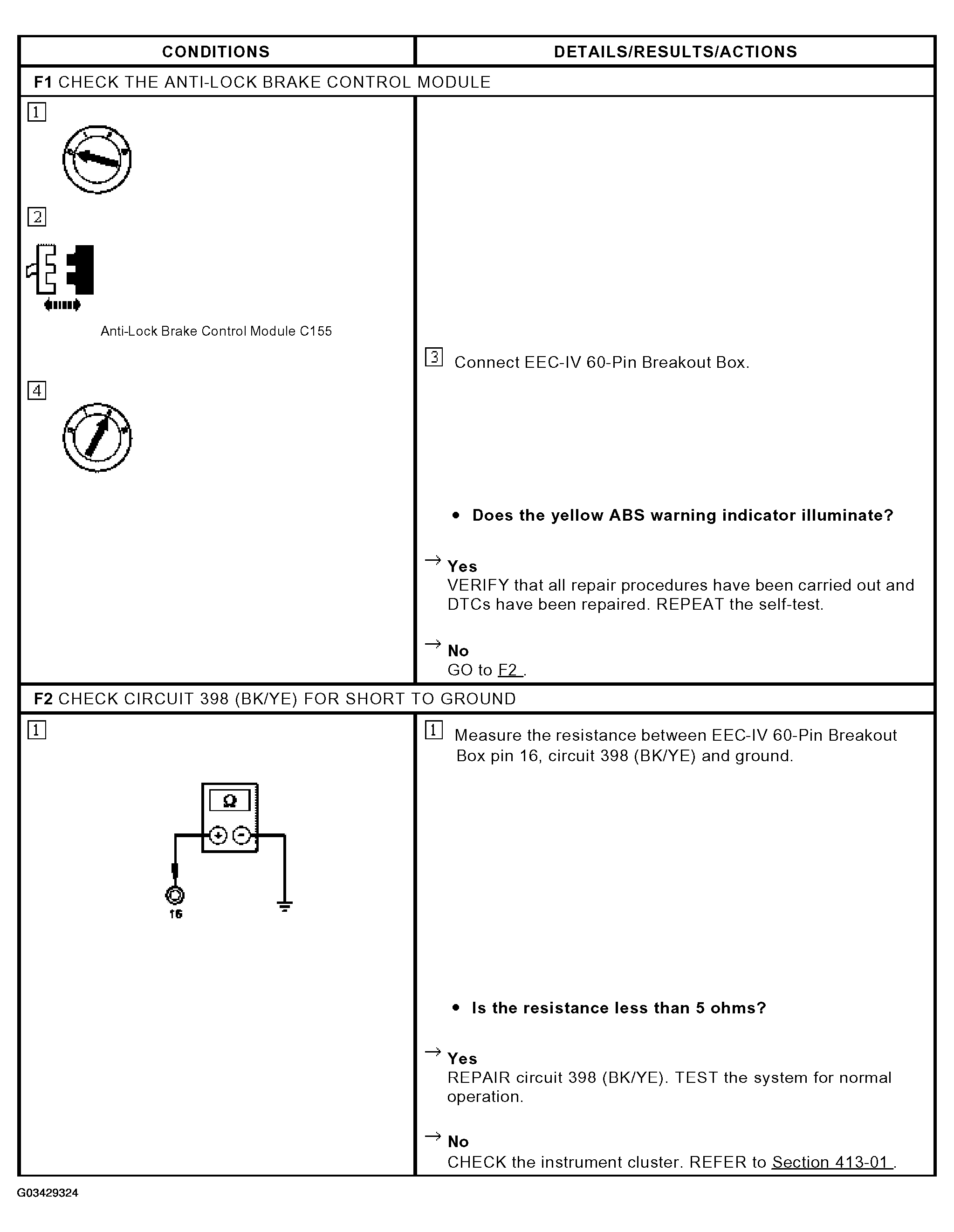

Fig 1: Pinpoint Test F: Yellow ABS Warning Indicator Does Not Self-Check (Tests F1 - F2)
G03429324Courtesy of FORD MOTOR CO.
