Removal and Installation

  1. Remove the mode select switch (MSS) knob.

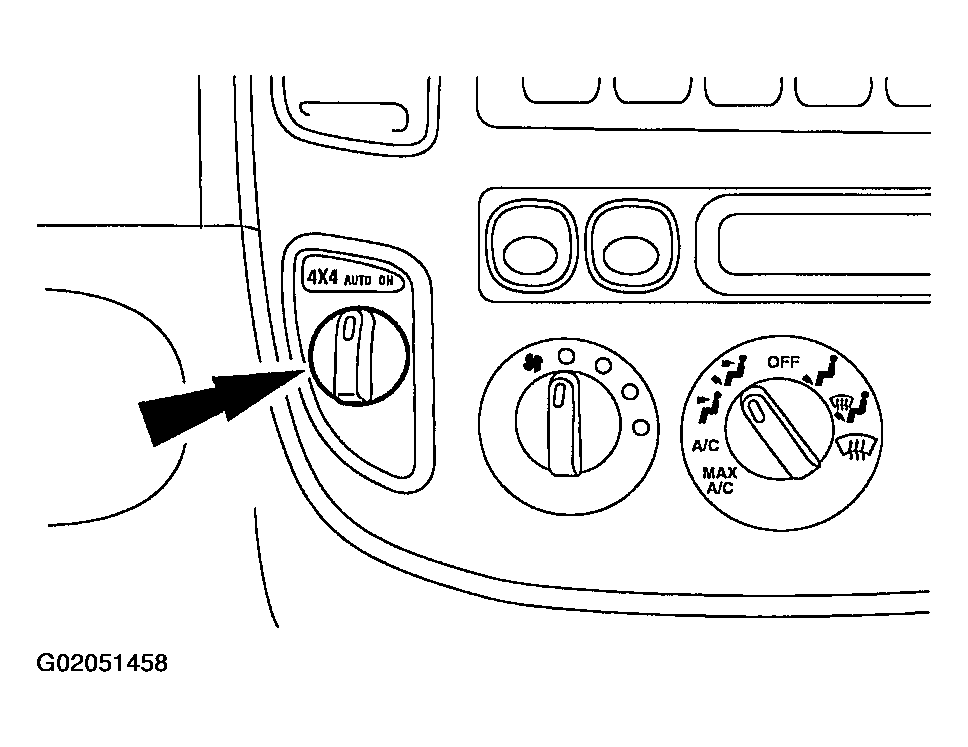

    Fig 1: Removing Mode Select Switch (MSS) Knob
    G02051458Courtesy of FORD MOTOR CO.
  2. Remove the instrument panel center finish panel.
  3. Remove the MSS.
    1. Remove the screws.
    2. Remove the MSS.

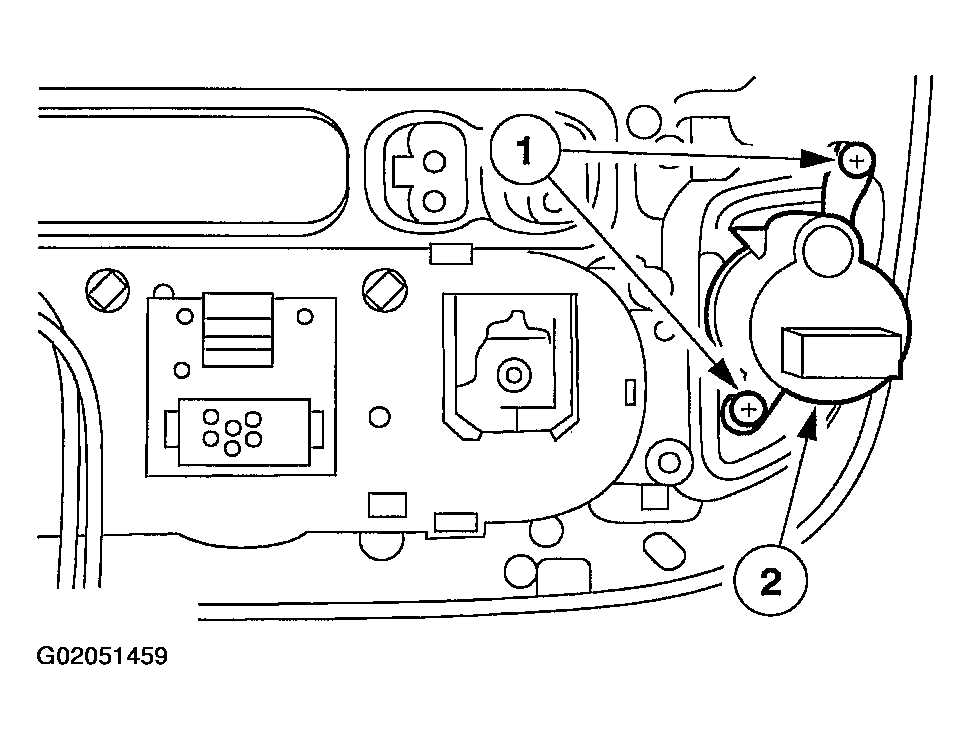

    Fig 2: Removing MSS
    G02051459Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
