Engine Coolant Temperature Sender Unit: Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Install the water temperature indicator sender unit.
1. Install the water temperature indicator sender unit.
2. Connect the electrical connector.

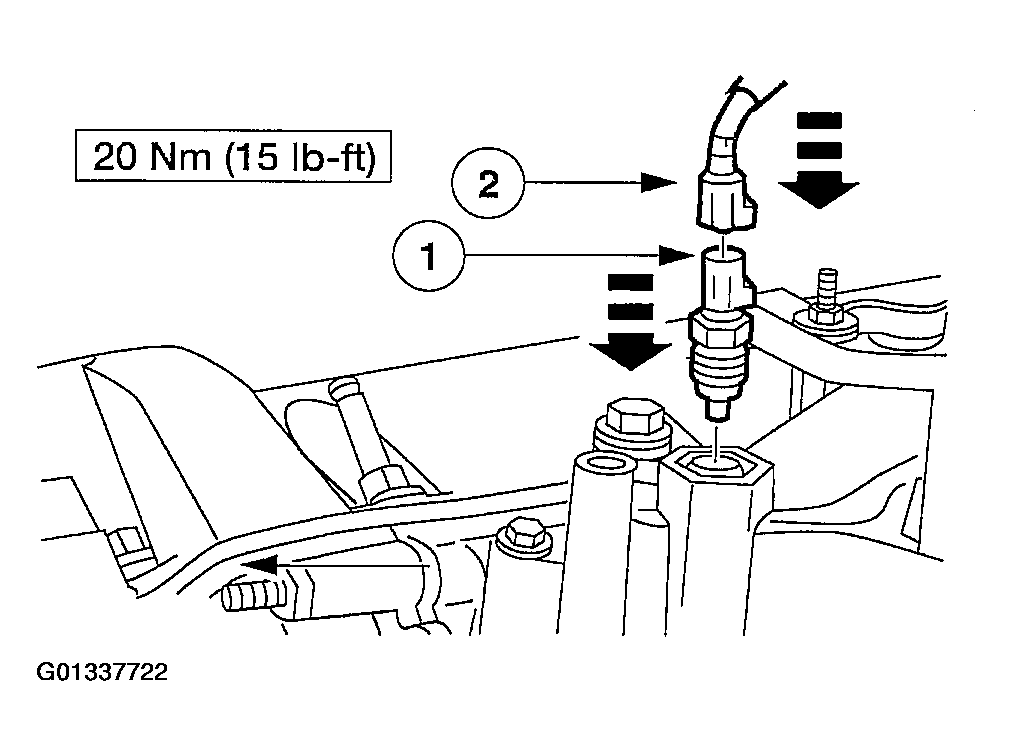

  Fig 1: Installing Water Temperature Indicator Sender Unit
  Courtesy of FORD MOTOR CO.
Install the engine appearance cover.

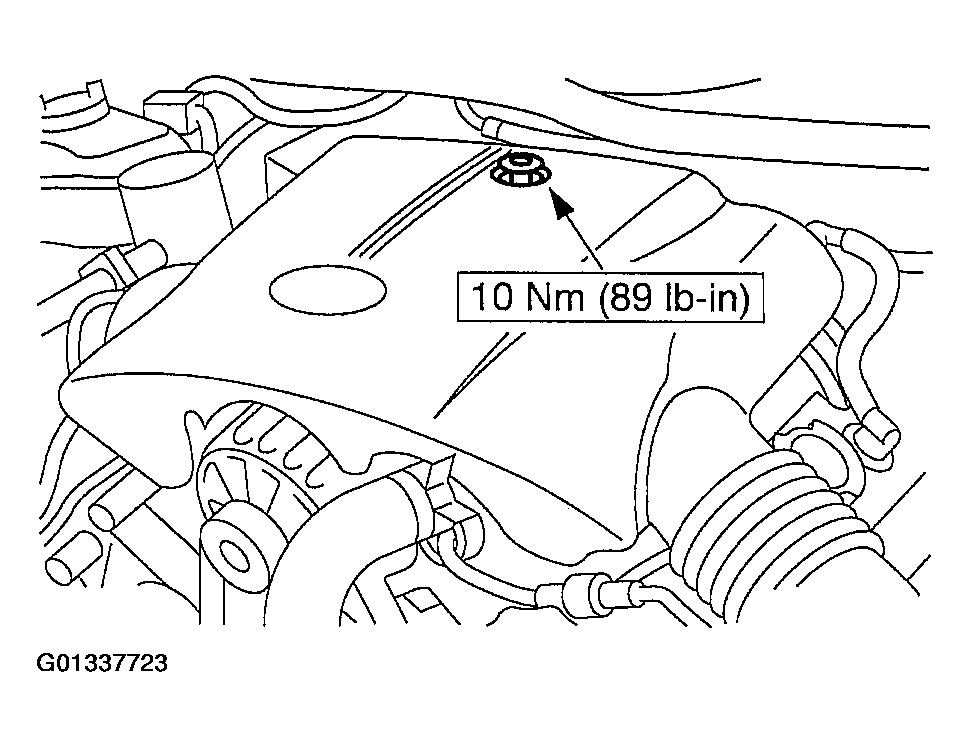

Fig 2: Installing Engine Appearance Cover
Courtesy of FORD MOTOR CO.
Fill the engine cooling system. For additional information, see COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
