Removal & Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES .
Disconnect the anti-lock brake control module electrical connectors.
- Disconnect the control module electrical connector.
- Disconnect the pump motor electrical connector.

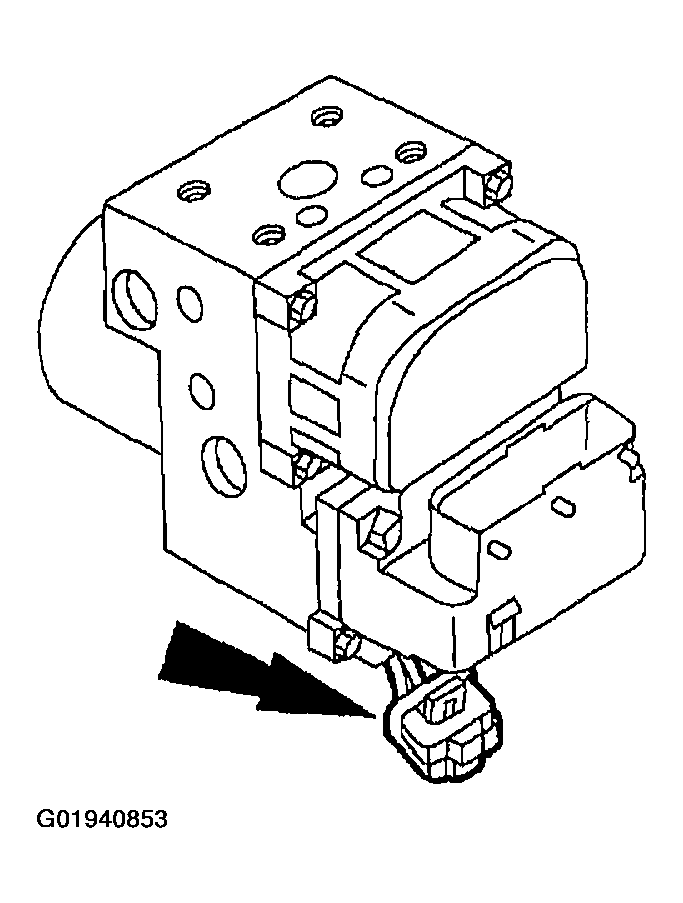

Fig 1: Identifying Anti-Lock Brake Control Module Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake control module.
1. Remove the screws.
2. Remove the module.
Fig 2: Identifying Anti-Lock Brake Control Module Screws
Courtesy of FORD MOTOR CO.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn its strategy.

To install, reverse the removal procedure.
