Fuel Tank Unit Connector - C433

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

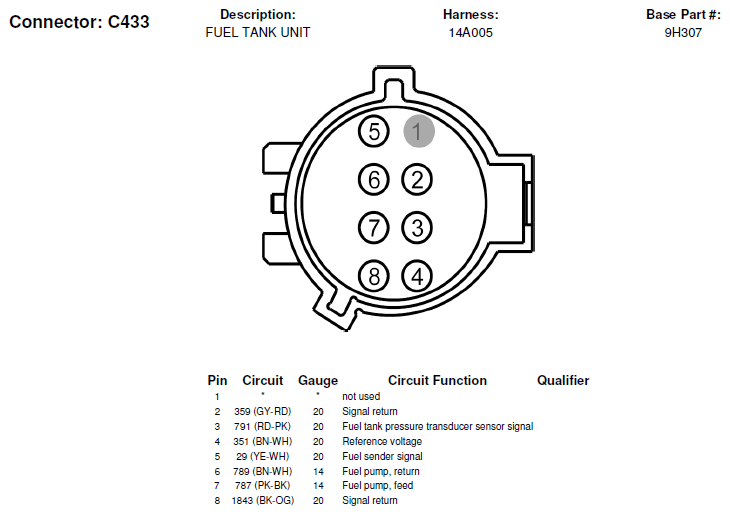

Fig 1: Fuel Tank Unit Connector End View (C433)
G06414226Courtesy of FORD MOTOR CO.
