Bumper - Exploded View, Front

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

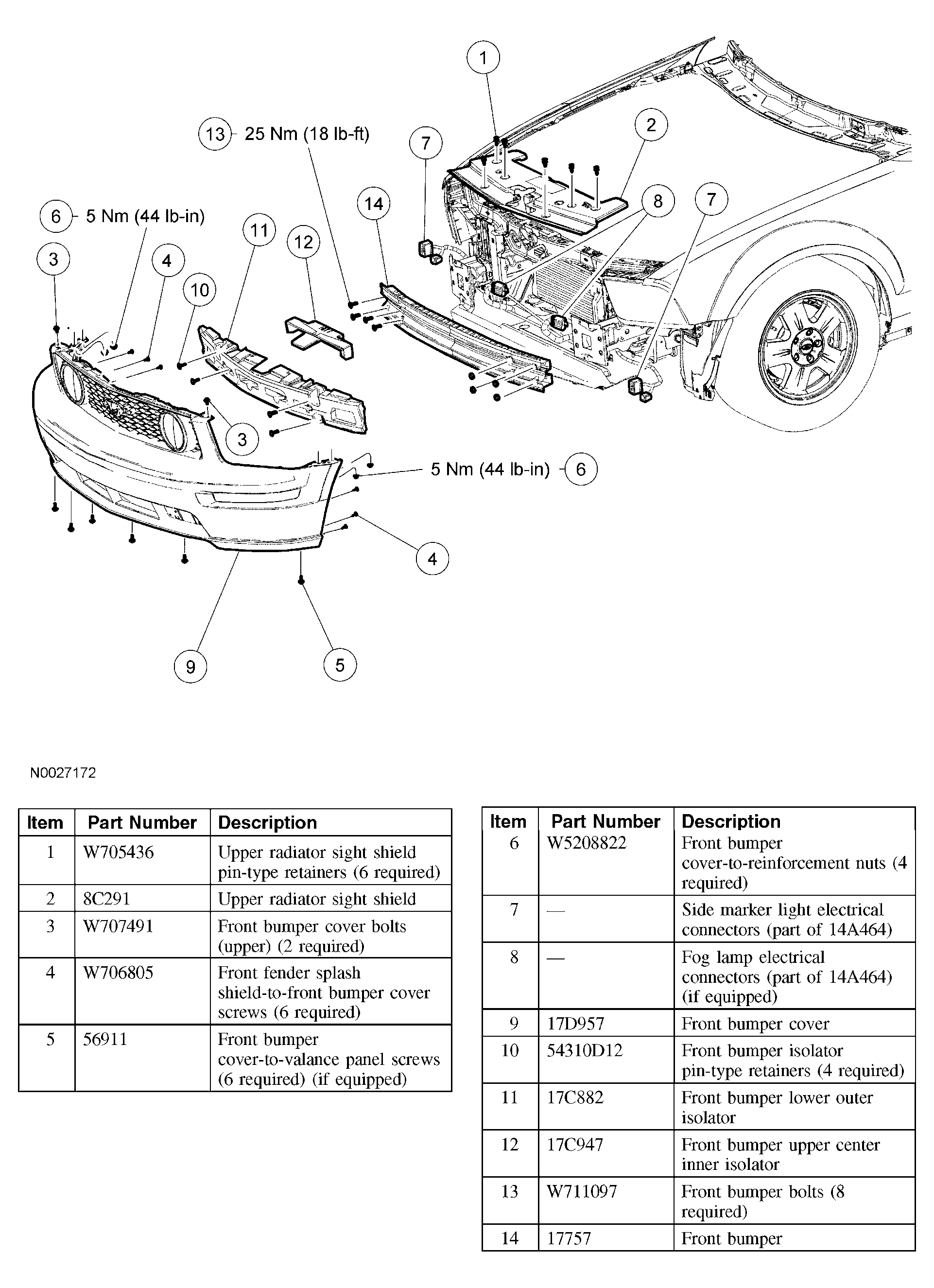

Fig 1: Exploded View Of Bumper - Front
G03987223Courtesy of FORD MOTOR CO.
