Lamp Assembly - Overhead Console Reading: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console assembly. For additional information refer to, INSTRUMENT PANEL AND CONSOLE .
  2. Separate the reading lamp assembly from the console.
    1. Remove the eight screws.
    2. Release the electrical connector.
    3. Separate the reading lamp assembly.

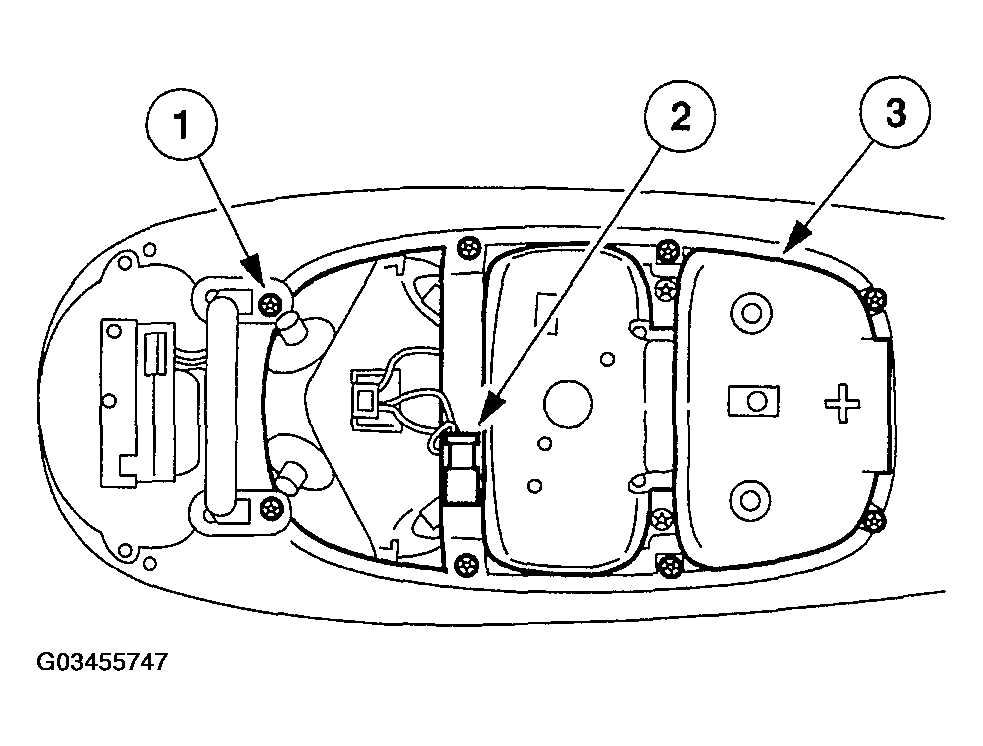

      Fig 1: Reading Lamp Assembly Removing Sequence
      G03455747Courtesy of FORD MOTOR CO.
  3. Remove the storage bin doors.
    1. Remove the four screws.
    2. Remove the storage bin doors.

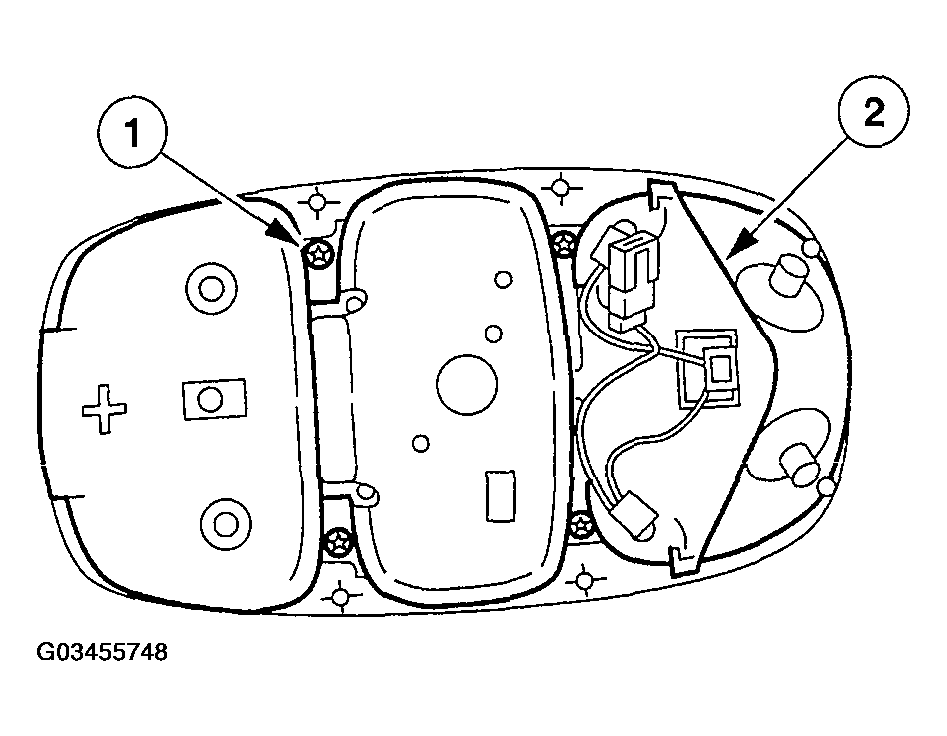

      Fig 2: Removing Storage Bin Doors
      G03455748Courtesy of FORD MOTOR CO.
