Air Distribution And Temperature Control- Vehicles Without Electronic Automatic Air Temperature Control (EATC)

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

The air distribution and temperature control flaps are mechanically operated by two Bowden cables each.

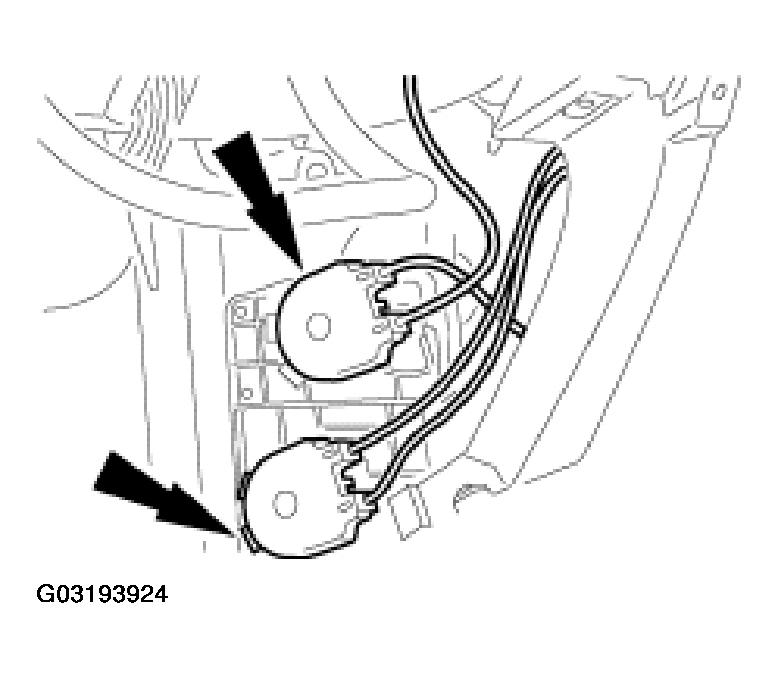

Fig 1: Identifying Air Distribution And Temperature Control Bowden Cables - Vehicles Without Electronic Automatic Air Temperature Control (EATC)
G03193924Courtesy of FORD MOTOR CO.
