Pinpoint Test B: The Speed Control Does Not Disengage When Brakes Are Applied

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

B1 CHECK BRAKE PEDAL POSITION (BPP) SWITCH

Key in OFF position.
Disconnect: BPP Switch C278.
Measure the resistance between the BPP switch C278 pin 1 and pin 2, component side, with no brakes applied.

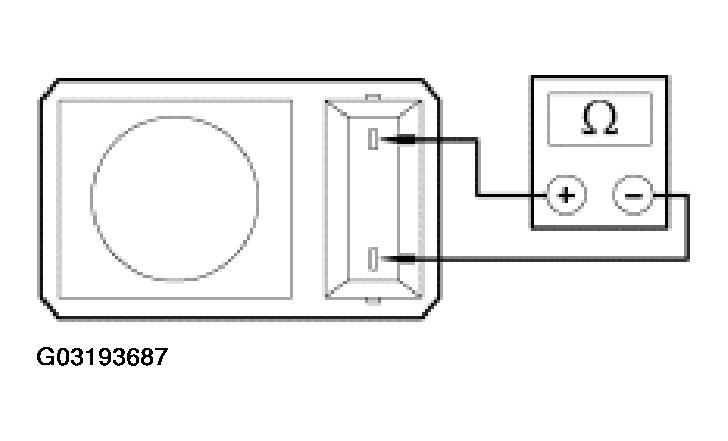

Fig 1: Checking Brake Pedal Position (BPP) Switch
Courtesy of FORD MOTOR CO.
Is the resistance less than 5 ohms?

Yes

GO to B2.

ADJUST or INSTALL a new BPP switch. TEST the system for normal operation.

B2 CHECK BRAKE PEDAL POSITION CIRCUIT 15-PG6 (GN/YE) FOR VOLTAGE

Key in ON position.
Measure the voltage between the BPP switch C278 pin 2, circuit 15-PG6 (GN/YE), harness side and ground.

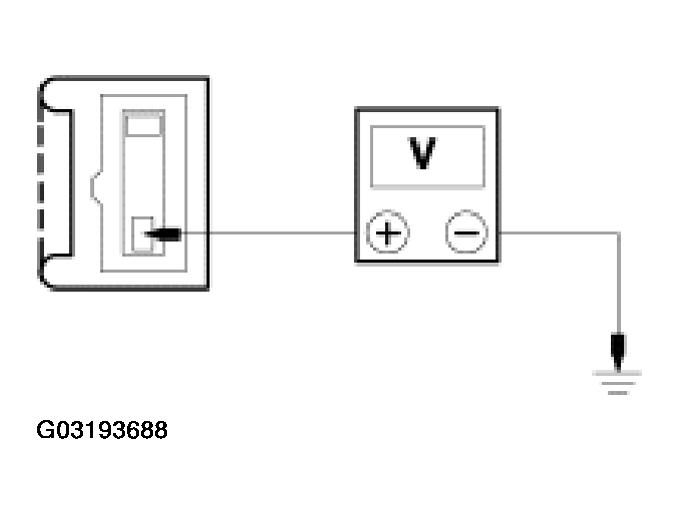

Fig 2: Checking Brake Pedal Position Circuit 15-PG6 (GN/YE) For Voltage
Courtesy of FORD MOTOR CO.
Is the voltage greater than 10 volts?

Yes

GO to B3.

If the stoplamps operate, REPAIR circuit 15-PG6 (GN/YE). TEST the system for normal operation If the stoplamps do not operate, REFER to EXTERIOR LIGHTING .

B3 CHECK CIRCUIT 15S-PG16 (GN/YE) FOR OPEN

Key in OFF position.
Disconnect: Speed Control Actuator C122.
Measure the resistance between the BPP switch C278, pin 1, circuit 15S-PG16 (GN/YE), and the speed control C122 pin 9, circuit 15S-PG16 (GN/YE), harness side.

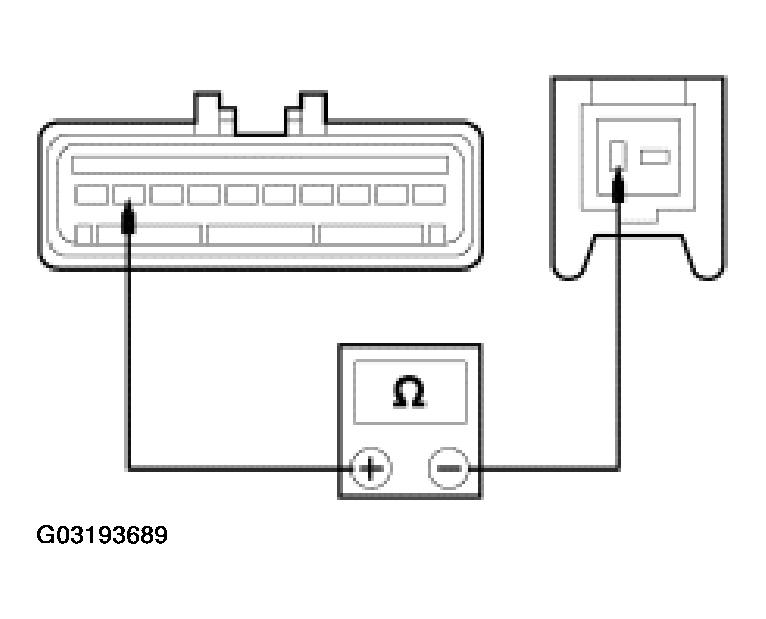

Fig 3: Checking Circuit 15S-PG16 (GN/YE) For Open
Courtesy of FORD MOTOR CO.
Is the resistance less than 5 ohms?

Yes

INSTALL a new speed control actuator. TEST the system for normal operation.

REPAIR circuit 15S-PG16 (GN/YE). TEST the system for normal operation.
