Intake Manifold Runner Control (IMRC) Actuator: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the pins in the IMRC are correctly inserted in the slots of the actuator.

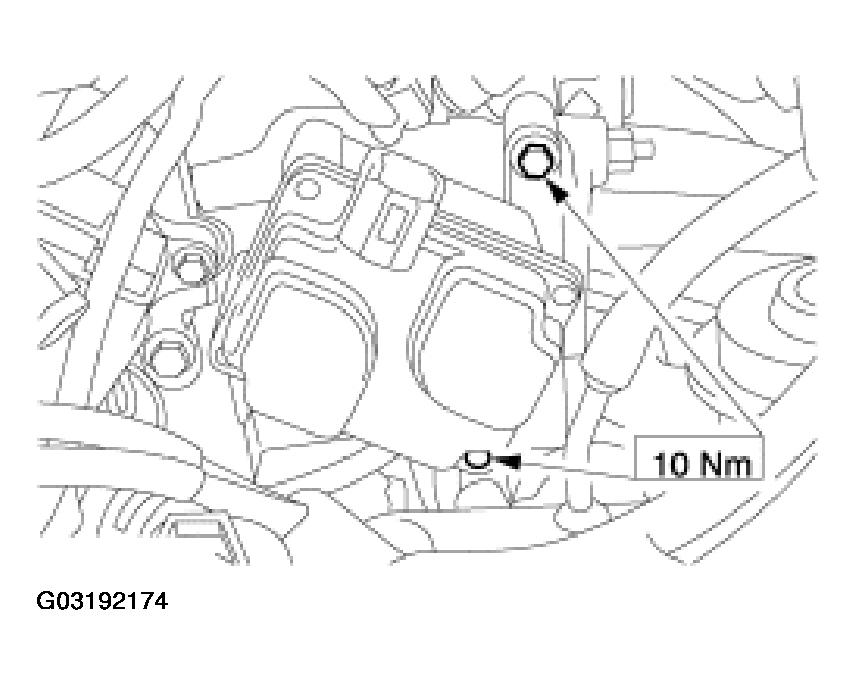

Fig 1: Installing IMRC Actuator

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
