Pinpoint Test J: The Coast Switch Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

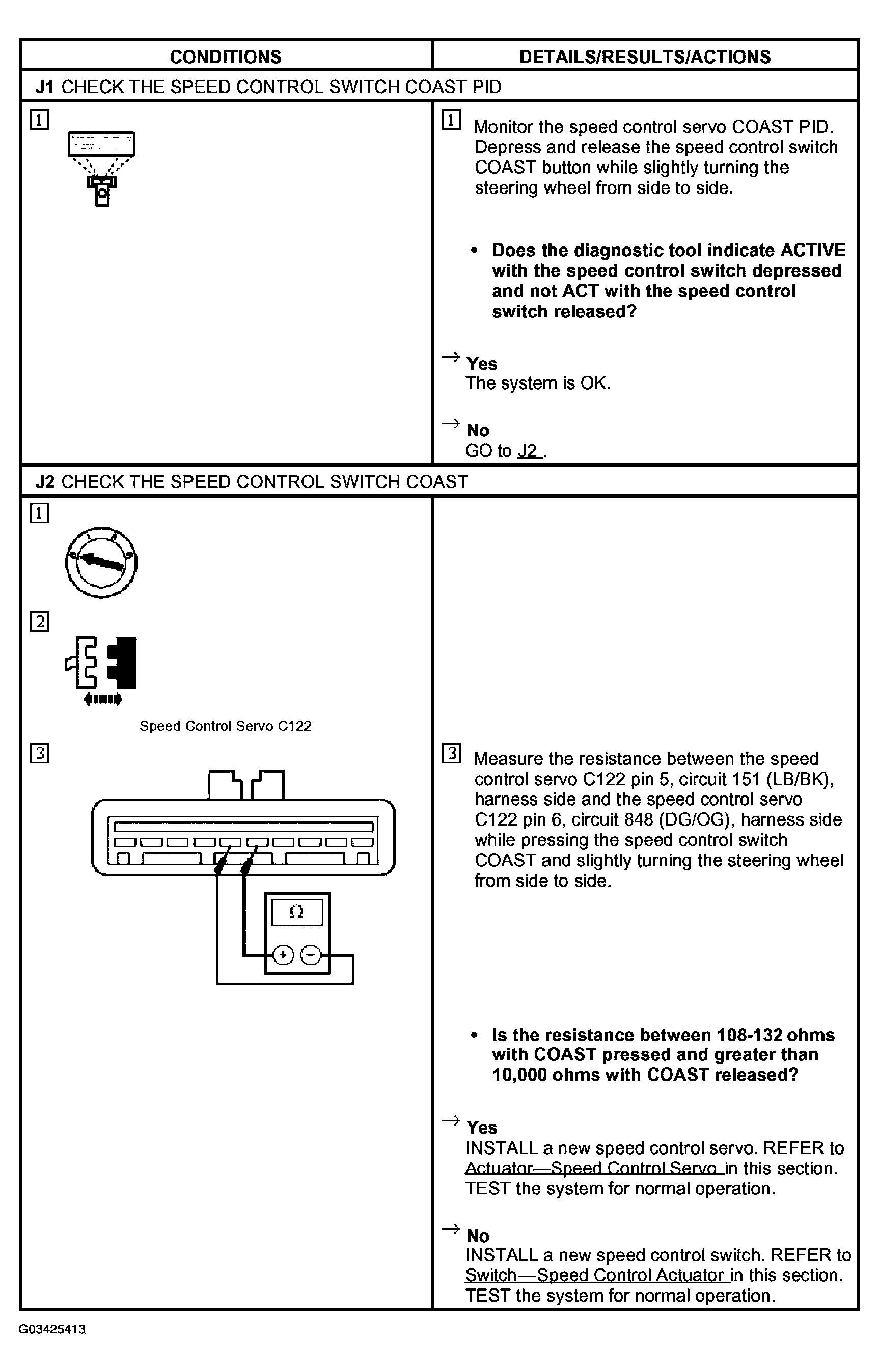

Fig 1: Pinpoint Test J: Coast Switch Is Inoperative (J1 & J2)
G03425413Courtesy of FORD MOTOR CO.
