General Equipment

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

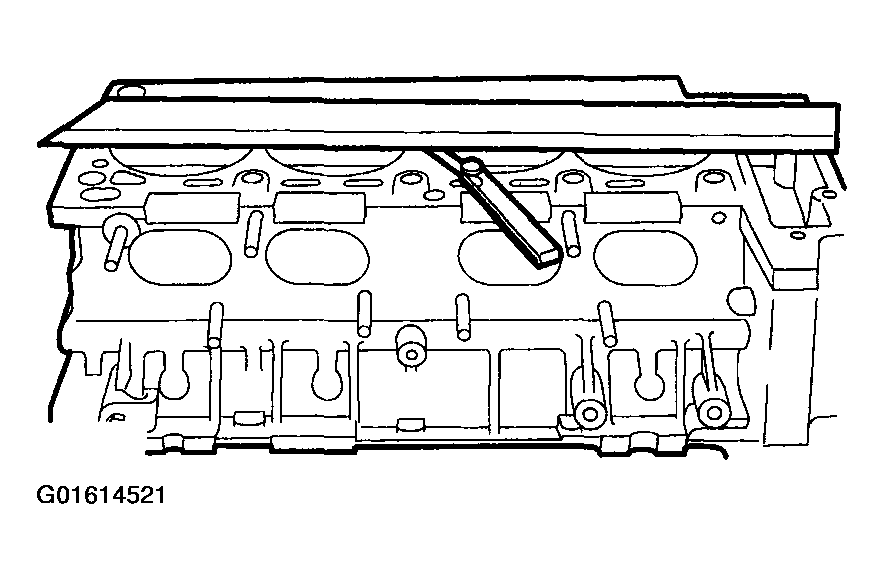

Fig 1: Cylinder Head Distortion Measuring General Equipment Index

Courtesy of FORD MOTOR CO.

Using a straightedge and feeler gauge, measure the cylinder head distortion.
- Measure the mating face distortion.
- If the value is not to specification, rework the mating face.

  Fig 2: Measuring Cylinder Head Distortion
  Courtesy of FORD MOTOR CO.
