Switch - A/C Selector: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the control assembly. For additional information, refer to CONTROL ASSEMBLY  .
  2. Remove the knob.
    Fig 1: Removing Knob
    G01307208Courtesy of FORD MOTOR CO.
  3. Unsnap the switch.

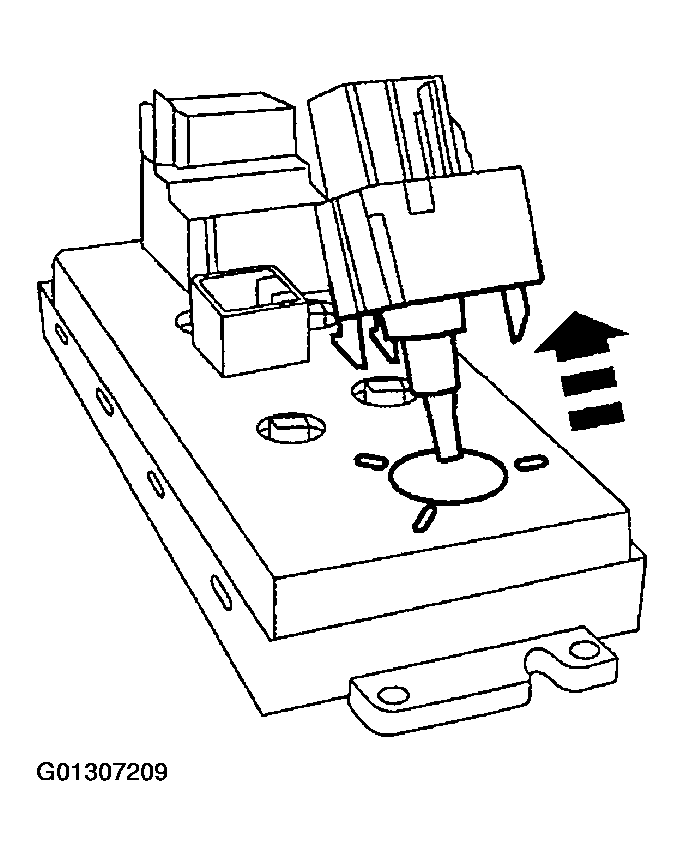

    Fig 2: Unsnapping Switch
    G01307209Courtesy of FORD MOTOR CO.
