Autolamp Sensor Connector - C287

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

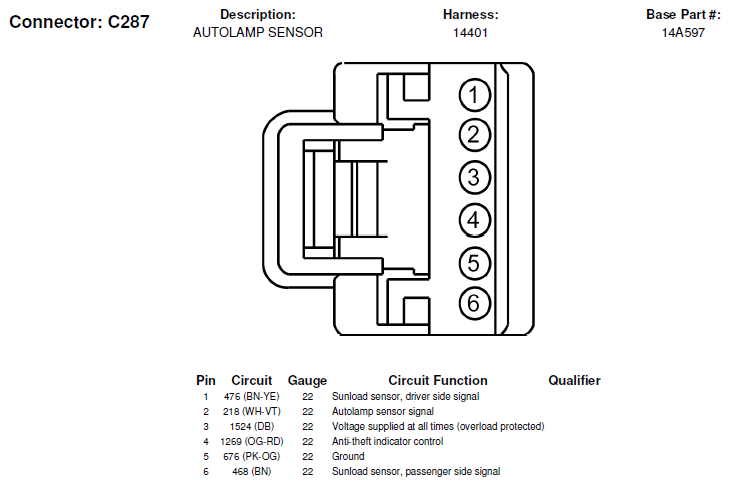

Fig 1: Autolamp Sensor Connector End View (C287)
G06414169Courtesy of FORD MOTOR CO.
