Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

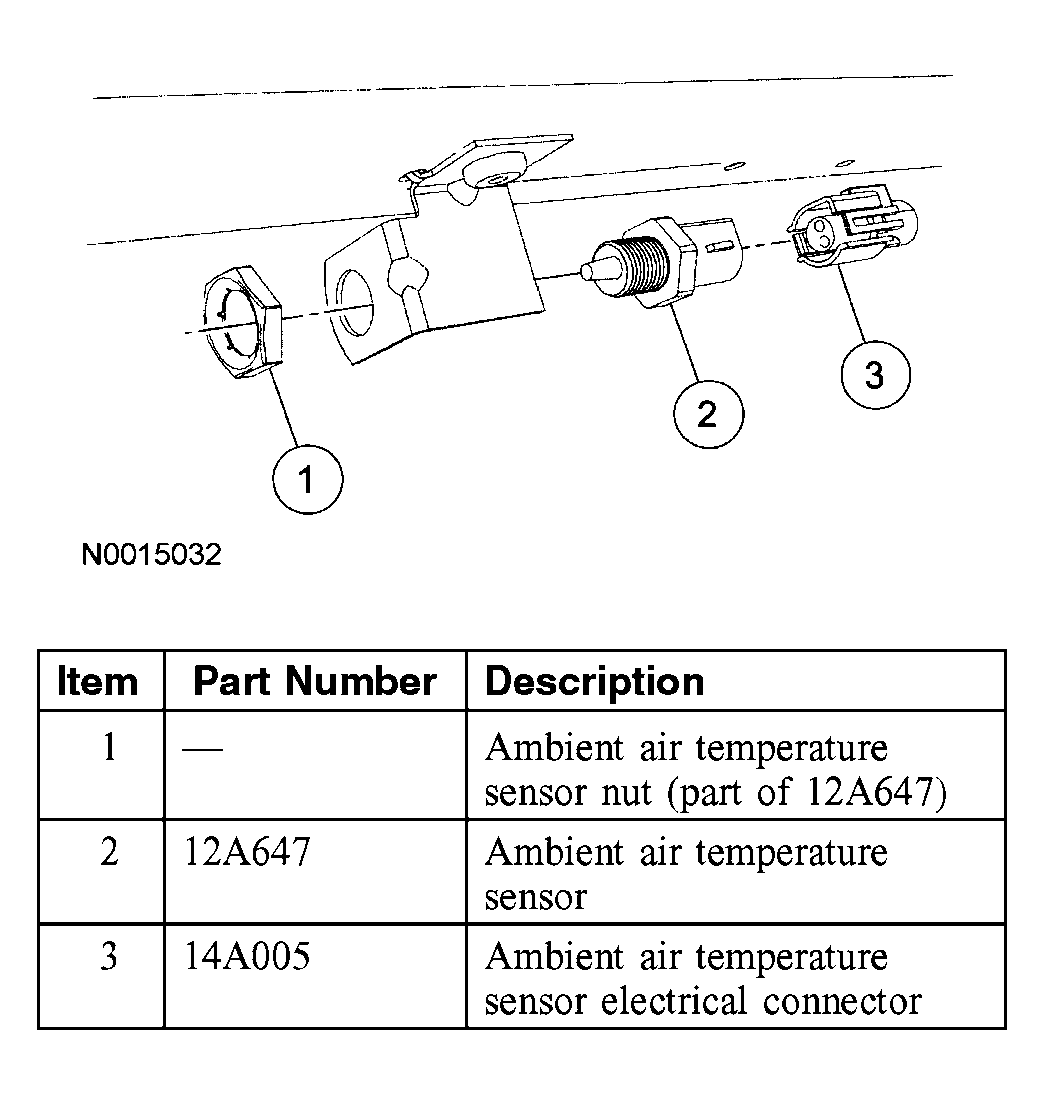

Fig 1: Removing/Installing Ambient Air Temperature Sensor
G03992487Courtesy of FORD MOTOR CO.
  1. Remove the lower radiator splash shield.
  2. Disconnect the ambient air temperature sensor electrical connector.
  3. Remove the ambient air temperature sensor nut.
  4. Remove the ambient air temperature sensor.
  5. To install, reverse the removal procedure.
