Side Lamp/Front Turn Signal Lamp Bulb: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

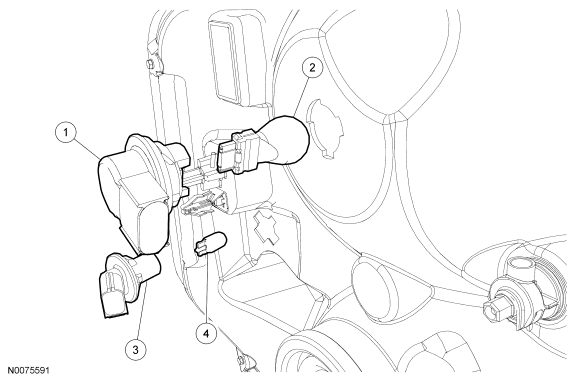

Fig 1: Exploded View Of Side Lamp/Front Turn Signal Lamp Bulb - Aerodynamic Style Headlamp
GF0044909Courtesy of FORD MOTOR CO.
Item Part Number Description
1 13411 Front turn signal lamp bulb holder
2 13466 Front turn signal lamp bulb
3 13411 Side lamp bulb holder
4 13466 Side lamp bulb holder

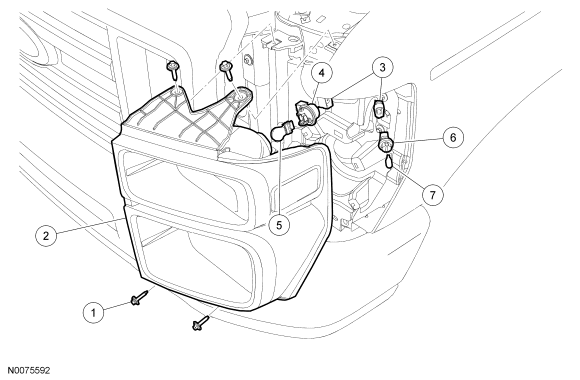

Fig 2: Exploded View Of Side Lamp/Front Turn Signal Lamp Bulb - Sealed Beam Style Headlamp
GF0044910Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N606677 Side lamp/front turn signal lamp housing bolts (4 required)
2 13200 Side lamp/front turn signal lamp housing
3 - Side lamp/front turn signal lamp housing electrical connectors (part of 14290)
4 13411 Front turn signal lamp bulb holder
5 13466 Front turn signal lamp bulb
6 13411 Side lamp bulb holder
7 13466 Side lamp bulb holder
