2.0L/5.4L CNG BI-FUEL ENG. - PARAMETER IDENTIFICATION DATA INPUT/OUTPUT INFO.

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-13-6, Date of Issue: July 9, 2001

DRIVEABILITY - CNG BI-FUEL - PARAMETER IDENTIFICATION DATA (PID) INPUT AND OUTPUT INFORMATION - VEHICLES EQUIPPED WITH 2.0L OR 5.4L CNG BI-FUEL ENGINE ONLY

Model(s):

FORD:
1. 1998-2000 Contour
2. 1998-1999 F-250 LD
3. 1998-2001 E-250, E-350, F-150

Bulletin No.: 01-13-6

Date: July 9, 2001

ISSUE

This article can be used as an overview of Bi-Fuel CNG vehicle Parameter Identification Data (PID), inputs and outputs as a diagnostic aid for the listed Bi-Fuel vehicles.

ACTION

Refer to the Parameter Identification Data (PID) Input And Output Information Chart (Fig 1 and Fig 2 ) as an aid for diagnostics and the Switch-Over Code Chart (Fig 3 ) for additional information.

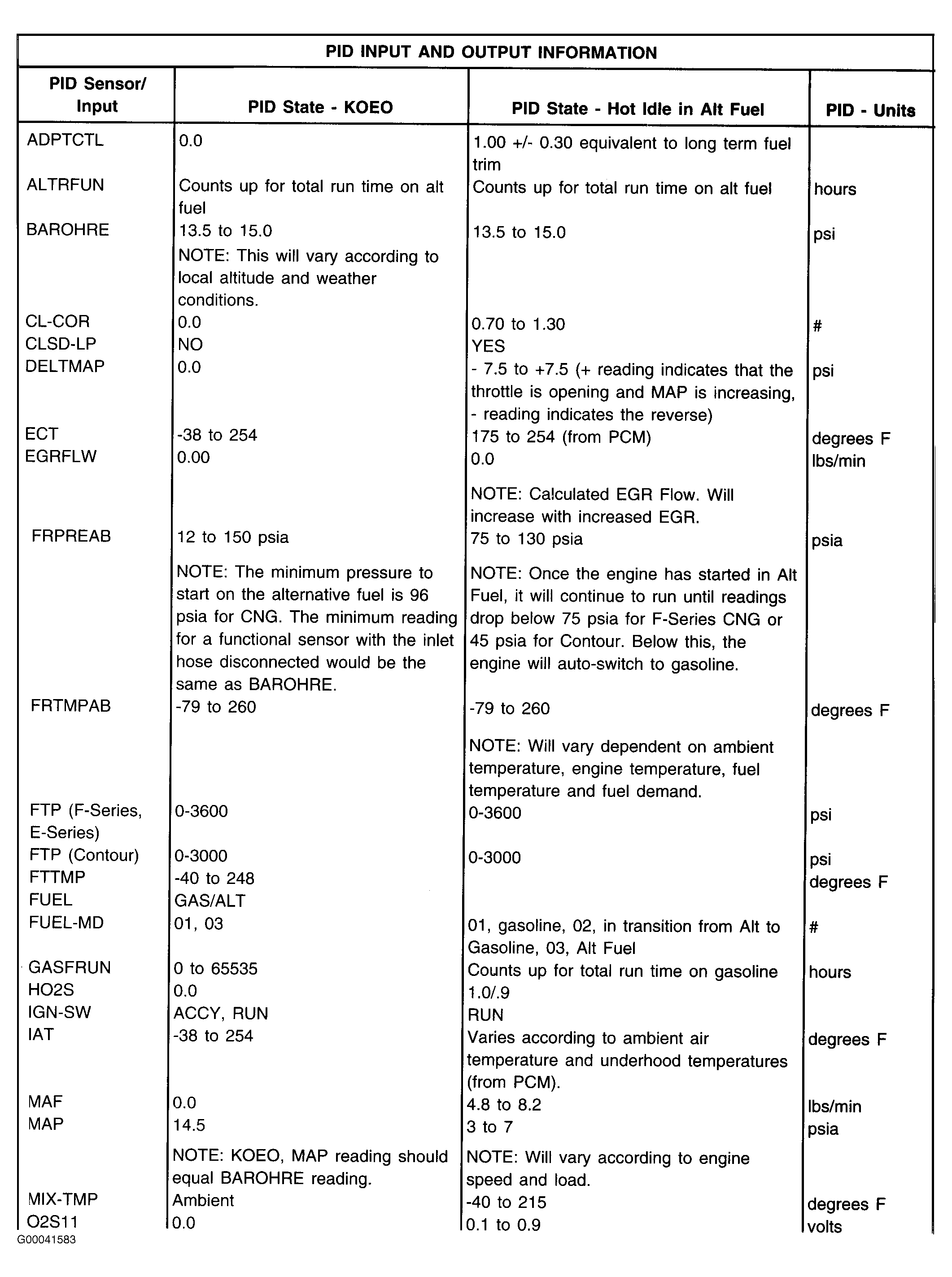

Fig 1: Parameter Identification Data (PID) Input And Output Information Chart Part 1

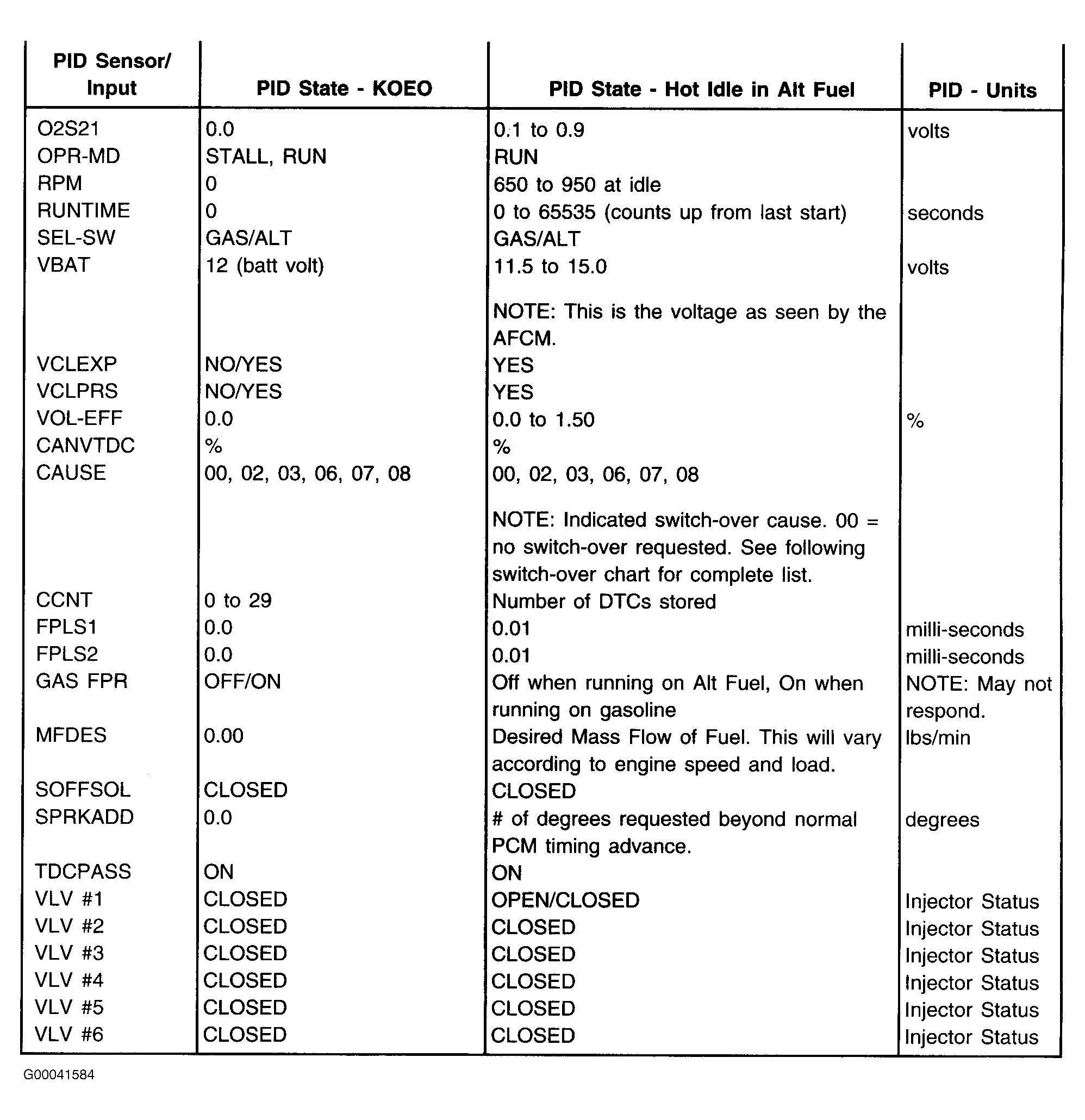

Fig 2: Parameter Identification Data (PID) Input And Output Information Chart Part 2

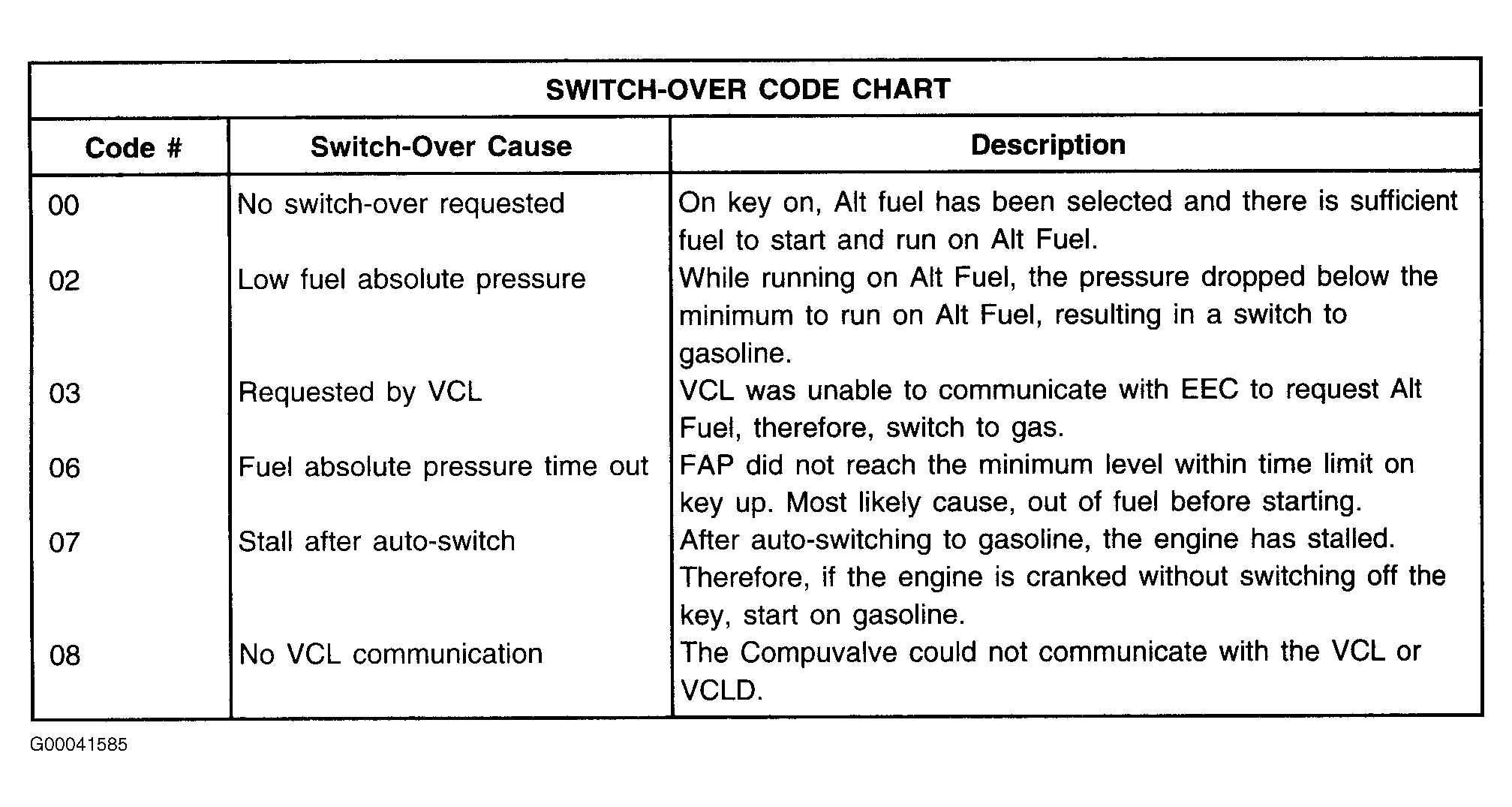

Fig 3: Switch-Over Code Chart

SERVICE INFORMATION

Refer to the PID Information table and PID Input/Output diagram (Fig 4 ) as an aid for diagnostics.

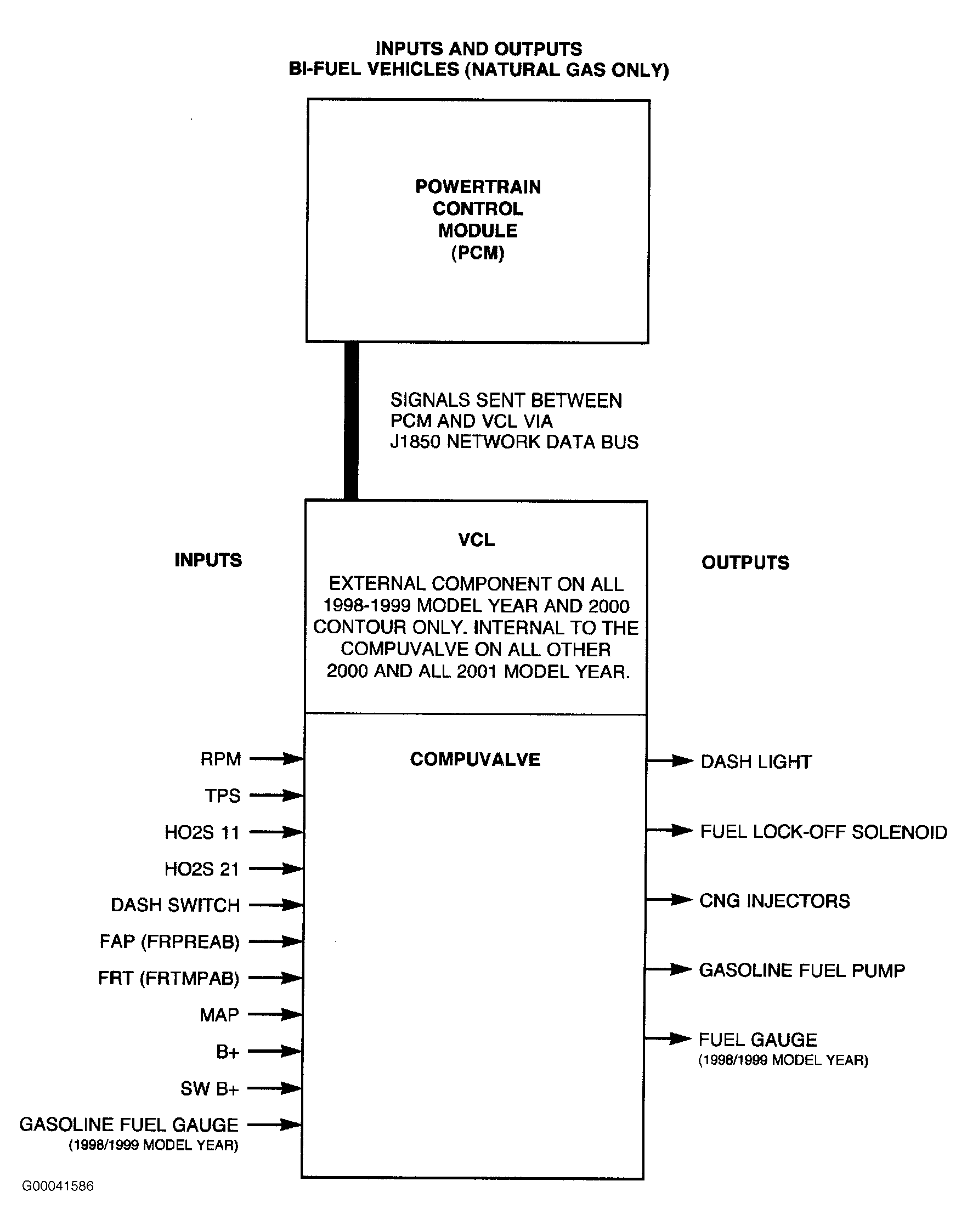

Fig 4: PID Input/Output Diagram

WARRANTY INFORMATION

WARRANTY STATUS: Information Only.

OASIS CODES: 490000, 602300, 603300, 608000, 609000, 611000, 623000, 690000, 698298
