Transmission Range Sensor: Escape

WARNING: This page is about a different car, the 2002 Mercury Cougar and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the vehicle in Neutral. Disconnect the battery cables. Remove the battery and tray. Disconnect the breather tube and Mass Air Flow (MAF) sensor. See Figure . Remove the intake tube and air cleaner cover. See Fig 1 .
    2. NOTE: It may be necessary to remove the thermostat housing to gain access to the Transmission Range (TR) sensor.
  2. Remove the air cleaner assembly. If necessary, remove the thermostat housing. See Figure . Remove the Transmission Range (TR) sensor.
  3. Disconnect the TR sensor harness connector (1). See Figure . Remove the bolts (2). Remove the TR sensor (3). Ensure the transaxle is in the Neutral position. Install the TR sensor and loosely install the bolts.
  4. Using the TR Sensor Alignment Tool (T79L-70010-A), align the TR sensor and tighten the bolts. See Figure . Connect the harness connector. Install the thermostat housing. Install the air cleaner assembly. Install the intake tube and air cleaner cover.
  5. Connect the breather tube and mass air flow (MAF) sensor. Before installing the battery tray check the vent tube hose for any obstructions, kinks, or incorrect routing position.
  6. Install the battery and tray. Connect the battery cables. Check the correct operation with parking brake control engaged. The engine should start only in Park or Neutral. Back-up lights should be active only in the Reverse position.

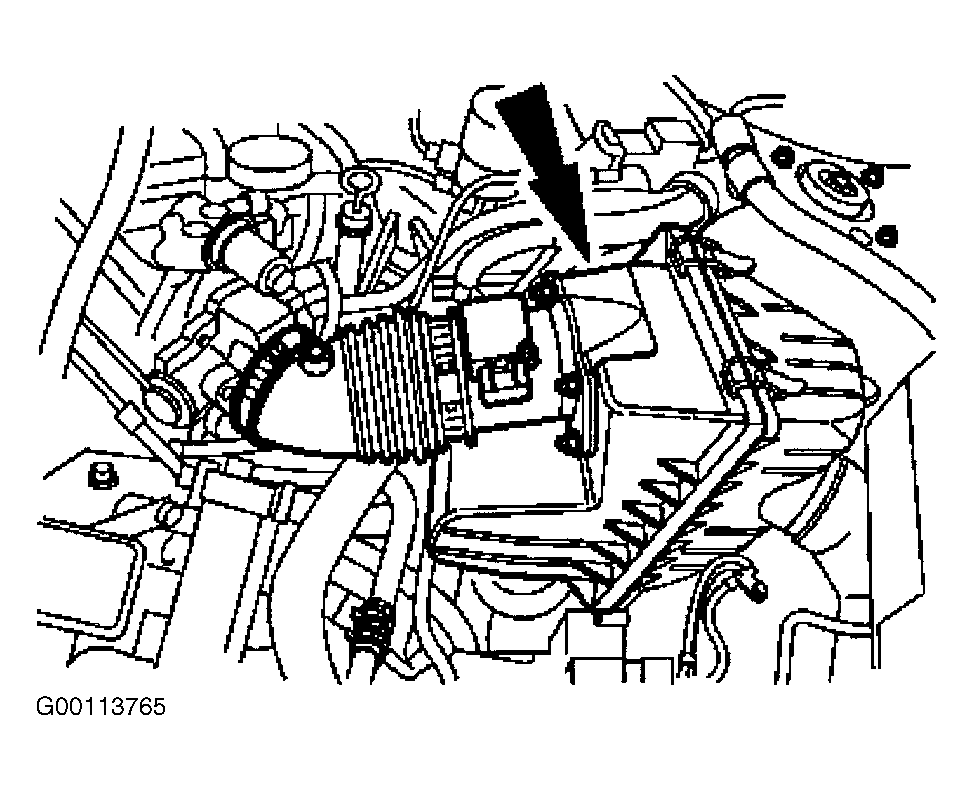

Fig 1: Removing & Installing Intake Tube & Air Cleaner Cover
G00113765Courtesy of FORD MOTOR CO.
