Passive Anti-Theft System (PATS) Transceiver

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. For additional information, Refer to BATTERY DISCONNECT .
  2. Remove the steering column opening cover. For additional information, Refer to BODY SYSTEM - EXTERIOR .
  3. Remove the parts in the order indicated in the following illustration and table.

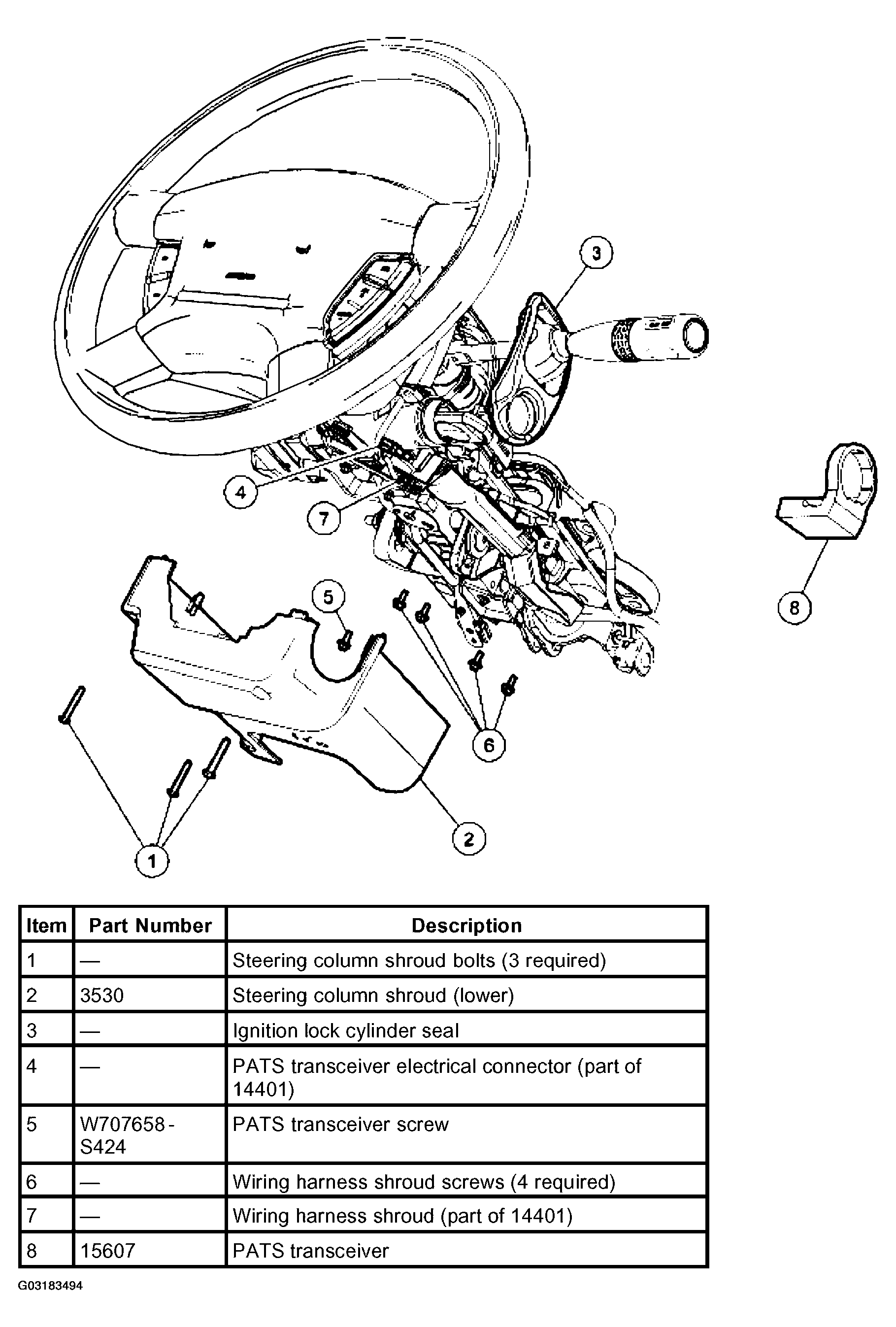

    Fig 1: Removing Passive Anti-Theft System (PATS) Transceiver
    G03183494Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
