Passenger Heated Seat Module C329
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

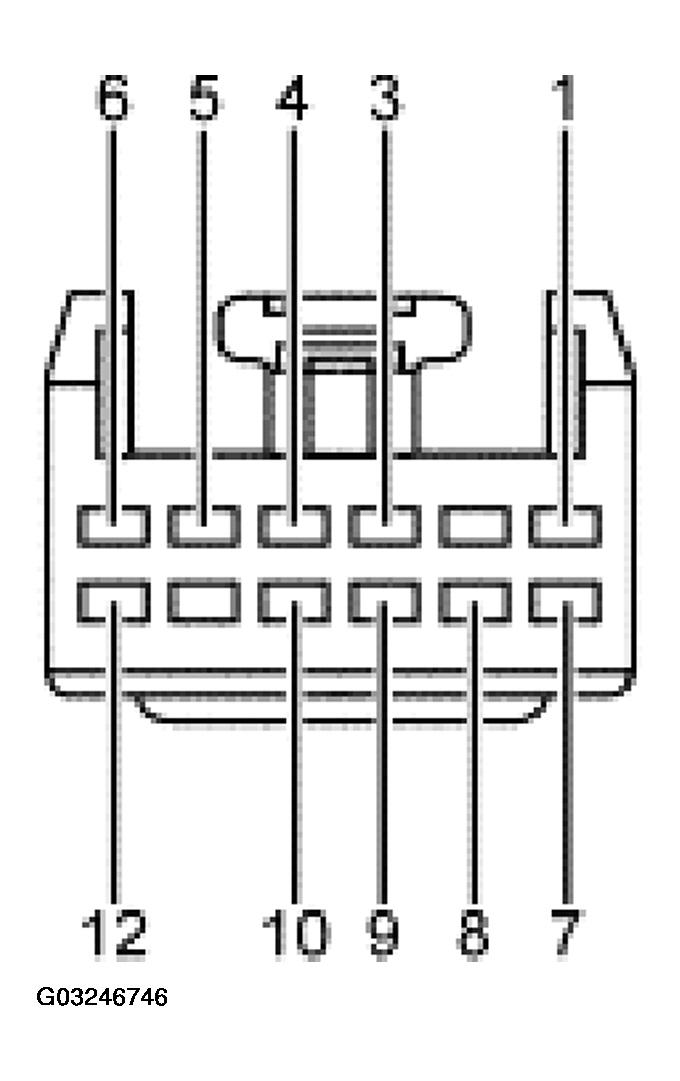

PASSENGER HEATED SEAT MODULE C329 PIN CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 1205 (BK) Ground | Continuity to ground, less than 5 ohms. |
| 3 | CKT 1061 (BN/LB) Heated seat cushion temperature sensor return | Continuity to seat cushion heater, less than 5 ohms. |
| 4 | CKT 1060 (BK/LB) Heated seat cushion temperature sensor feed | Continuity to seat cushion heater, less than 5 ohms. |
| 5 | CKT 294 (WH/LB) Ignition voltage from SJB | Greater than 10 volts when ignition is ON. |
| 6 | CKT 1064 (YE/LB) Heated seat cushion element feed | Continuity to seat cushion heater, less than 5 ohms. |
| 7 | CKT 1067 (VT/LB) Heated seat cushion element return | Continuity from backrest element to heated seat module, less than 5 ohms. |
| 8 | CKT 1256 (WH/YE) High low and off circuit from DATC to heated seat module | Continuity from heated seat switch, less than 5 ohms. |
| 9 | CKT 58 (BN) Low indicator circuit from DATC to heated seat module | Continuity from heated seat switch, less than 5 ohms. |
| 10 | CKT 579 (BK/OG) High indicator circuit from DATC to heated seat module | Continuity from heated seat switch, less than 5 ohms. |
| 12 | CKT 51 (BK/WH) Battery voltage from BEC | Greater than 10 volts at all times. |
