RICP C9025
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

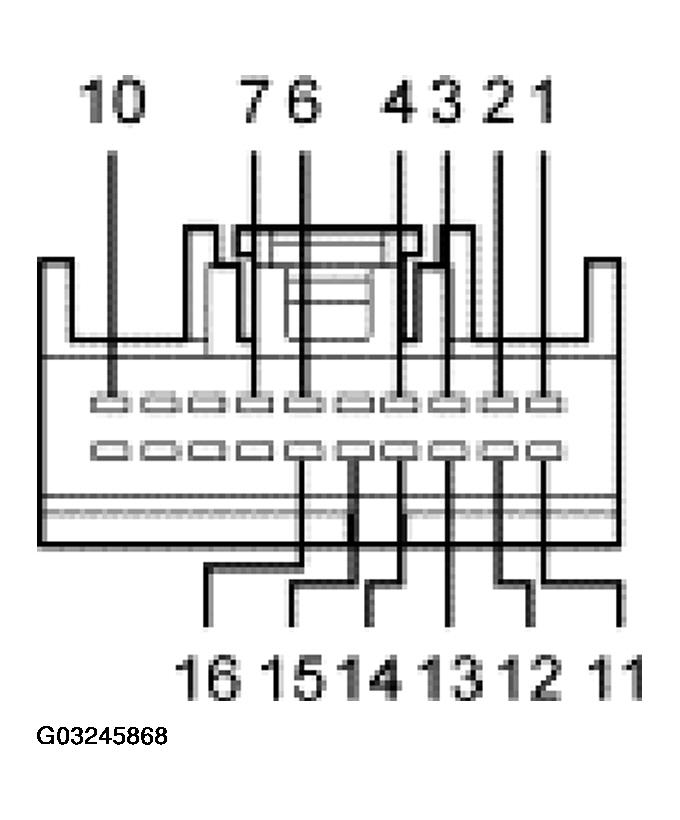

RICP C9025
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 802 (OG/RD) RR speaker output | Less than 5 ohms between the audio unit and the RICP and greater than 10,000 ohms between the RICP and ground. |
| 2 | 1781 (OG/RD) RR speaker output | Less than 5 ohms between the RICP and the RR speaker and greater than 10,000 ohms between the RICP and ground. |
| 3 | 800 (GY/LB) LR speaker output | Less than 5 ohms between the audio unit and the RICP and greater than 10,000 ohms between the RICP and ground. |
| 4 | 1726 (GY/LB) LR speaker output | Less than 5 ohms between the RICP and the LR speaker and greater than 10,000 ohms between the RICP and ground. |
| 6 | 833 (TN) audio corporate protocol (ACP) | Less than 5 ohms between the audio unit and the RICP unit and greater than 10,000 ohms between the RICP and ground. |
| 7 | 1205 (BK) DVD unit ground | Less than 5 ohms between the RICP unit and ground. |
| 10 | 1204 (BK/OG) DVD unit ground | Less than 5 ohms between the RICP unit and ground. |
| 11 | 803 (BN/PK) RR speaker return | Less than 5 ohms between the audio unit and the RICP and greater than 10,000 ohms between the RICP and ground. |
| 12 | 1780 (BN/PK) RR speaker return | Less than 5 ohms between the RICP and the RR speaker and greater than 10,000 ohms between the RICP and ground. |
| 13 | 801 (TN/YE) LR speaker return | Less than 5 ohms between the audio unit and the RICP and greater than 10,000 ohms between the RICP and ground. |
| 14 | 1725 (TN/YE) LR speaker return | Less than 5 ohms between the RICP and the LR speaker and greater than 10,000 ohms between the RICP and ground. |
| 15 | 1068 (LG/BK) power on signal from audio unit | Less than 5 ohms between the audio unit and the RICP and greater than 10,000 ohms between the RICP unit and ground. |
| 16 | 832 (LB/PK) audio corporate protocol (ACP) | Less than 5 ohms between the audio unit and the RICP and greater than 10,000 ohms between the RICP unit and ground. |
