DVD Player C949
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

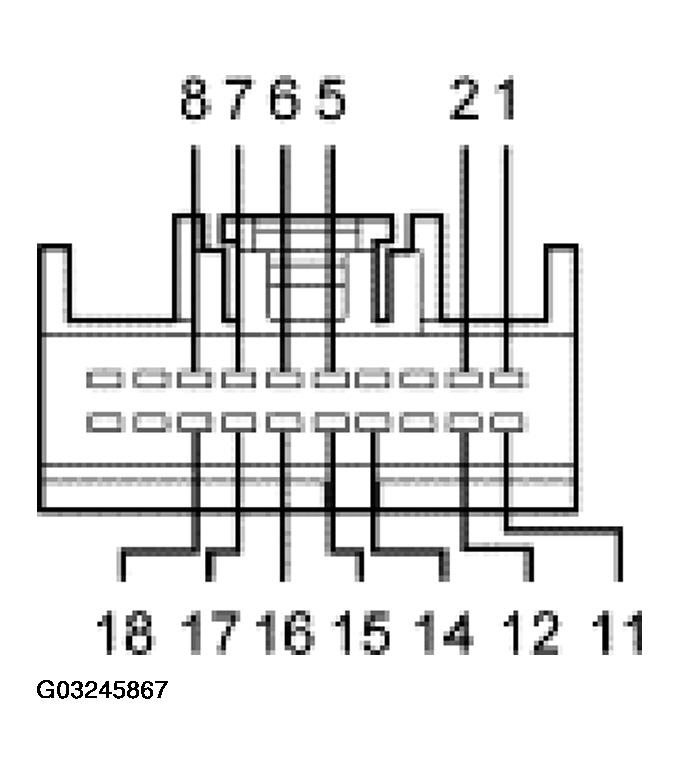

DVD PLAYER C949
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1001 (RD/WH) B+ battery feed | Greater than 10 volts between the DVD unit and ground. |
| 2 | 1068 (LG/BK) power on signal from audio unit | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the DVD unit and ground. |
| 5 | 1803 (WH) left (+) audio out | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 6 | 1805 (RD) right (+) audio output signal | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 7 | 1803 (WH) left (+) audio in | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 8 | 1805 (RD) right (+) audio in | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 11 | 832 (LB/PK) ACP A | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the DVD unit and ground. |
| 12 | 833 (TN) ACP B | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the DVD unit and ground. |
| 14 | 1205 (BK) DVD unit ground | Less than 5 ohms between the DVD unit and ground. |
| 15 | 1804 (LG) left(-) audio output signal | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 16 | 1806 (BK) right (-) audio output signal | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 17 | 1804 (LG) left (-) audio in | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the audio unit and ground. |
| 18 | 1806 (BK) right (-) audio in | Less than 5 ohms between the audio unit and the DVD unit and greater than 10,000 ohms between the audio unit and ground. |
