Air Inlet Actuator C289
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

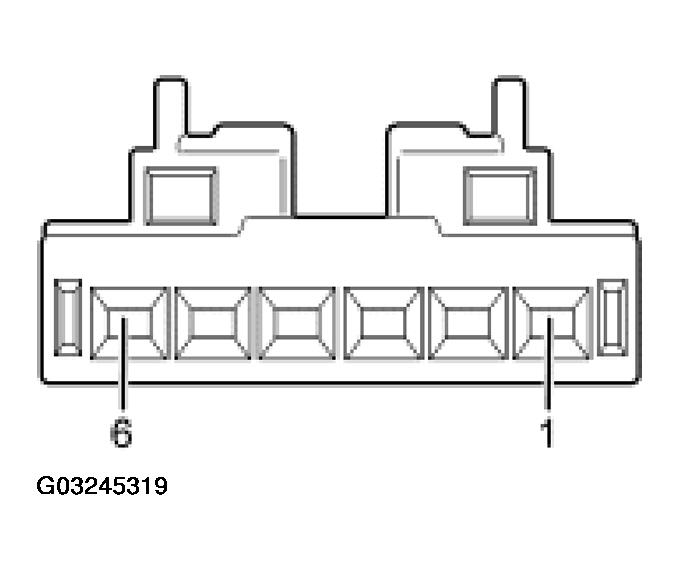

AIR INLET ACTUATOR C289 CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 1991 (LB/WH) air inlet door actuator motor drive A circuit | Greater than 10,000 ohms to chassis ground and 0 volts. |
| 6 | CKT 1990 (WH/LB) air inlet door actuator motor drive B circuit | Greater than 10,000 ohms to chassis ground and 0 volts. |
