Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure, see Fig 1-Fig 10 .

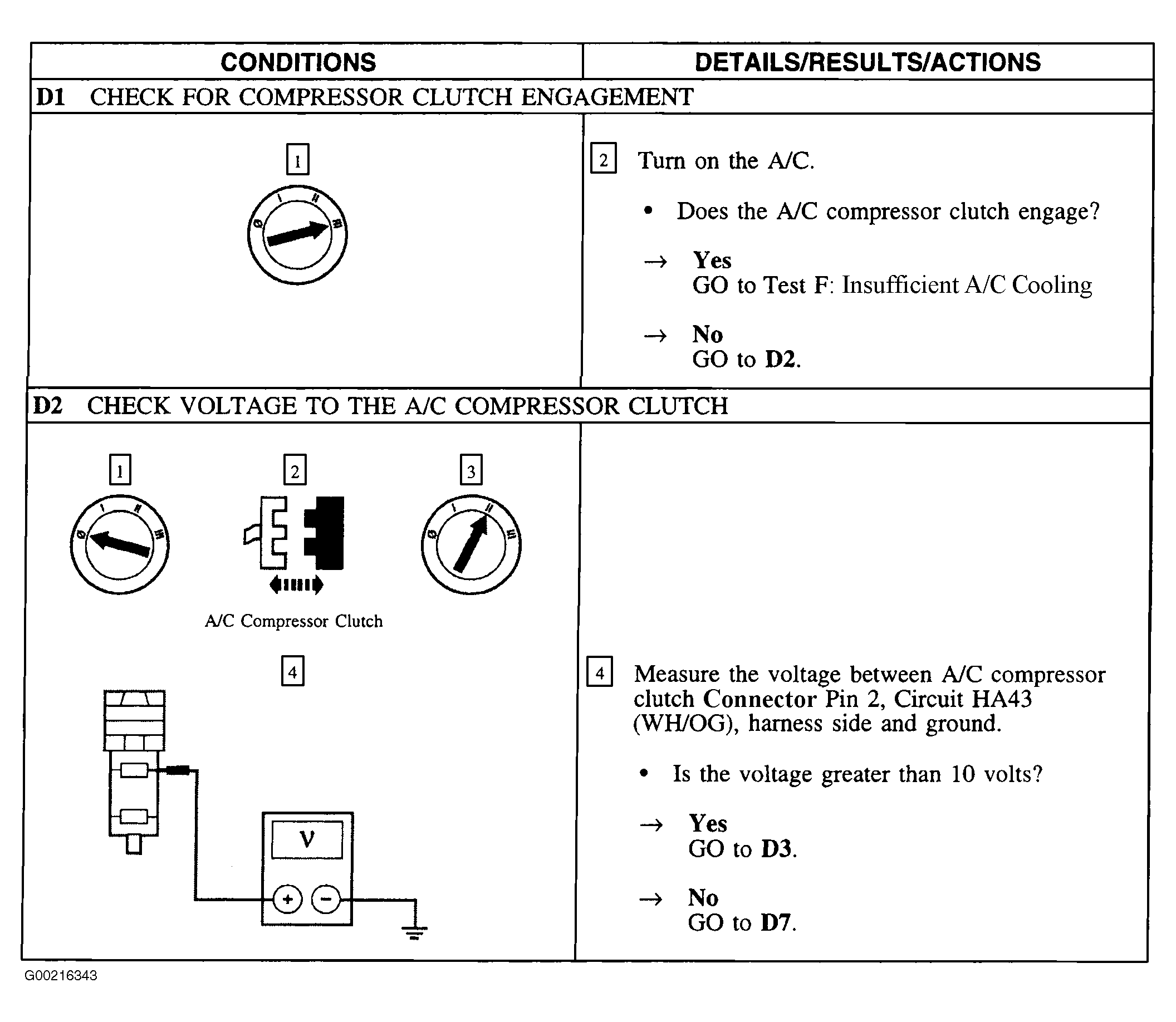

Fig 1: Test D (Steps D1-D2)

Courtesy of FORD MOTOR CO.

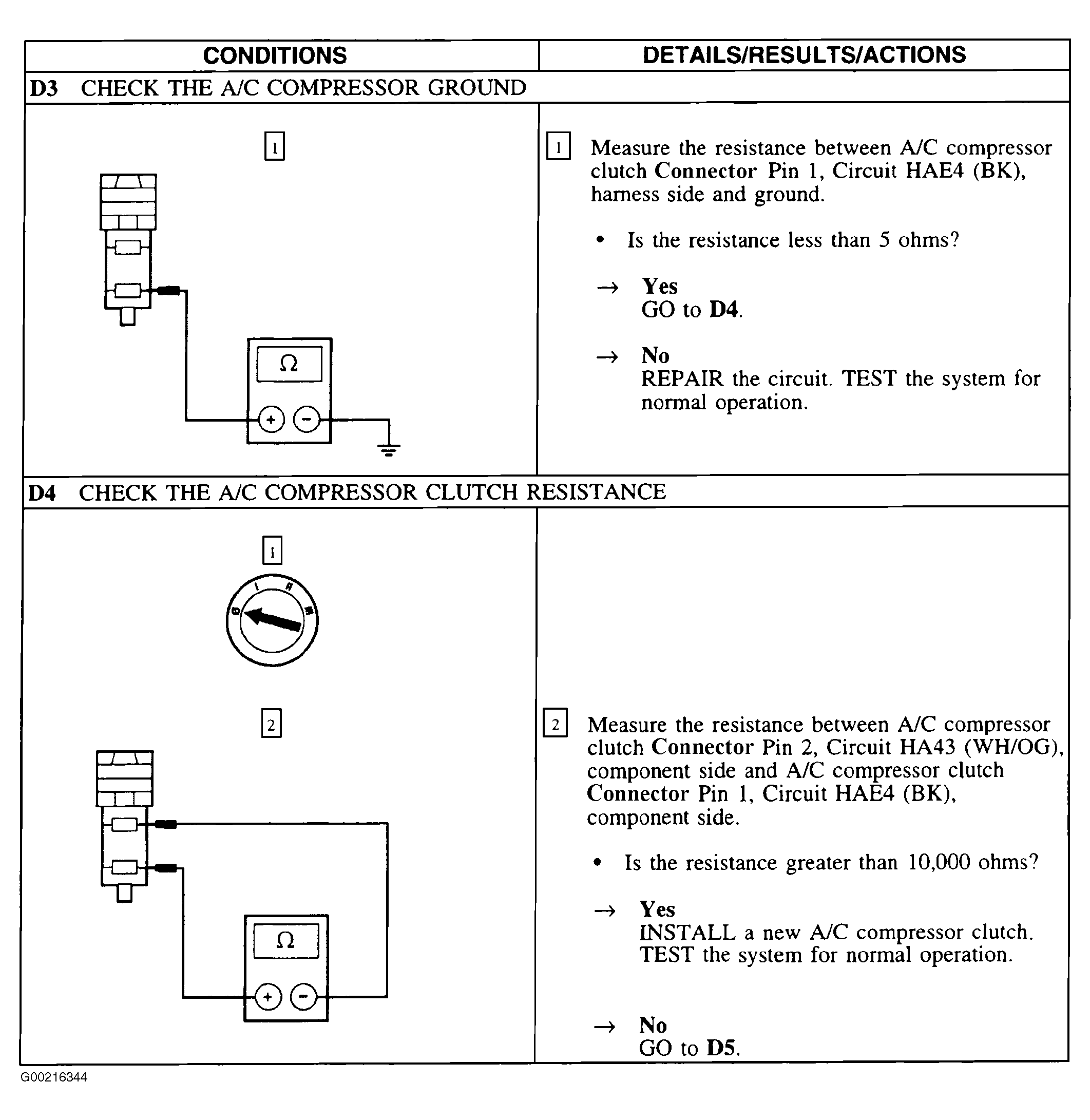

Fig 2: Test D (Steps D3-D4)

Courtesy of FORD MOTOR CO.

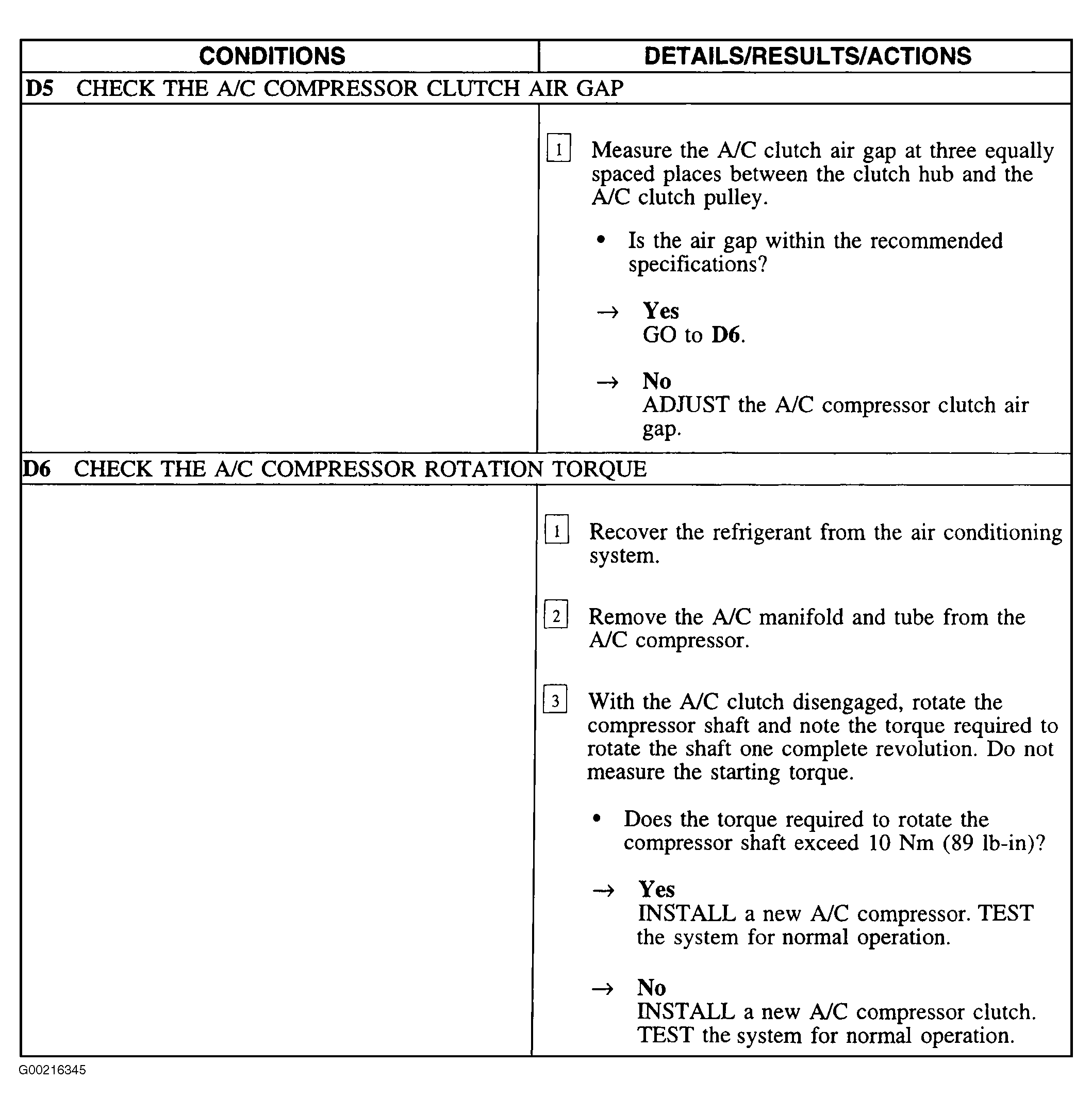

Fig 3: Test D (Steps D5-D6)

Courtesy of FORD MOTOR CO.

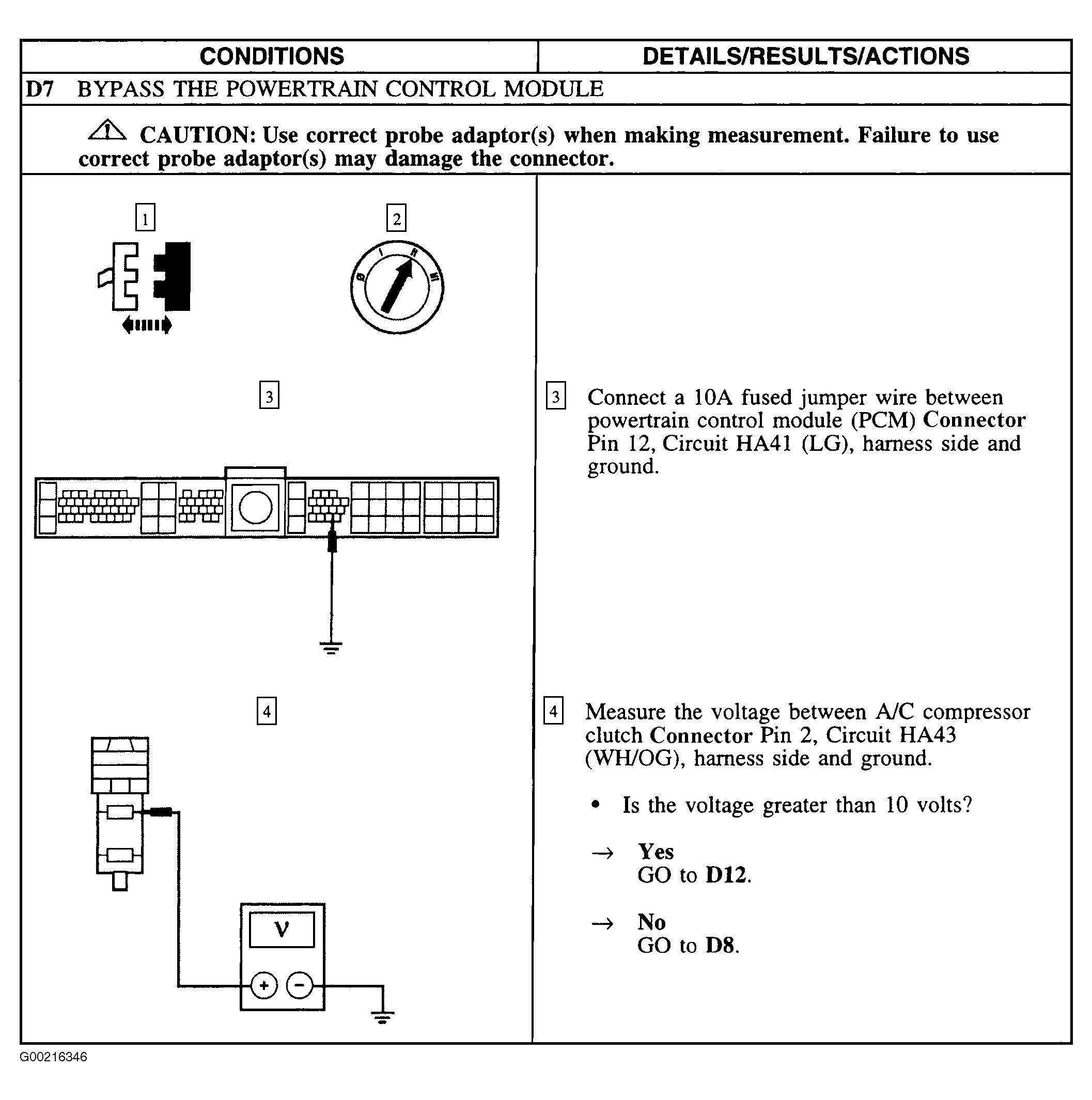

Fig 4: Test D (Step D7)

Courtesy of FORD MOTOR CO.

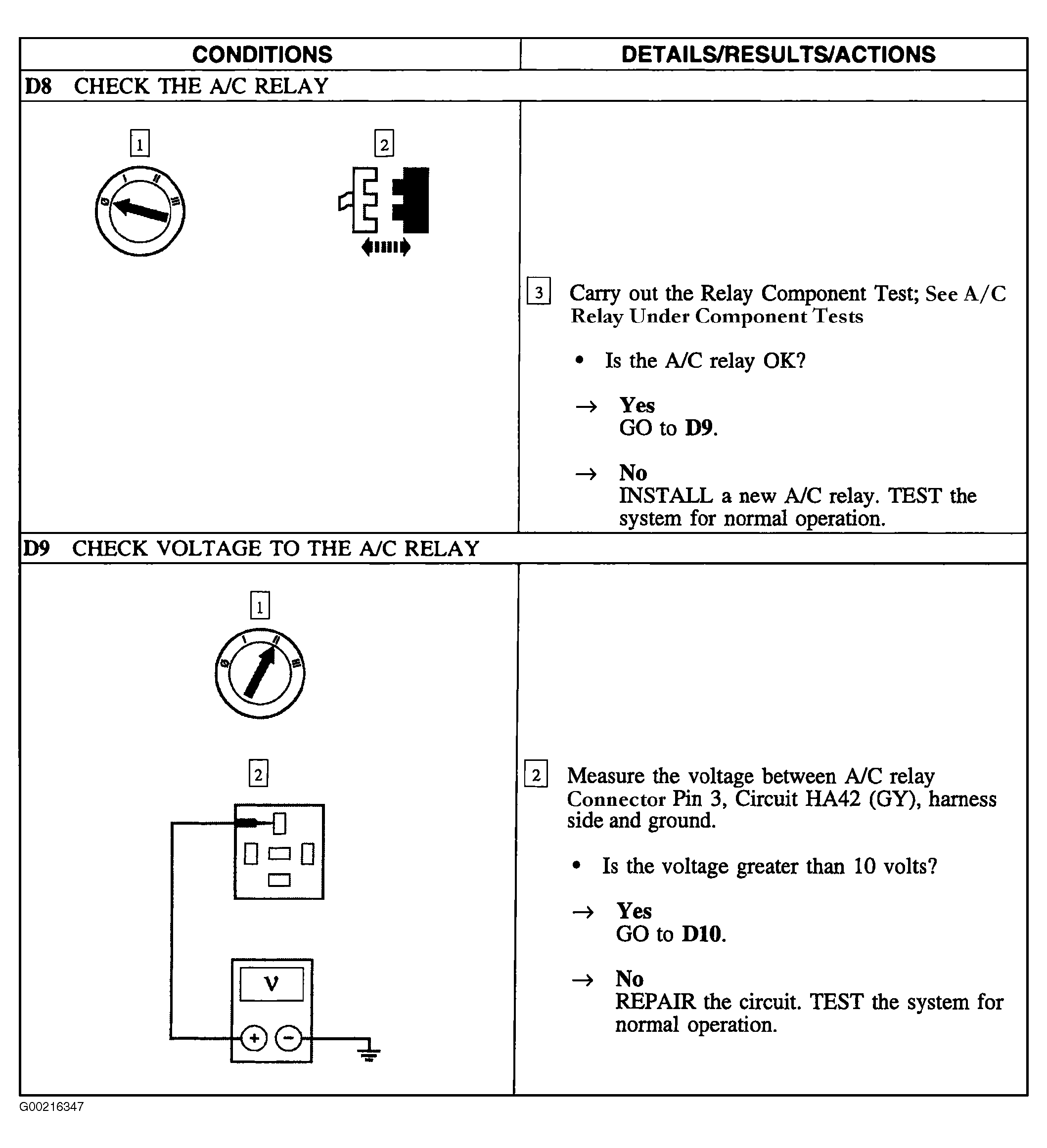

Fig 5: Test D (Steps D8-D9)

Courtesy of FORD MOTOR CO.

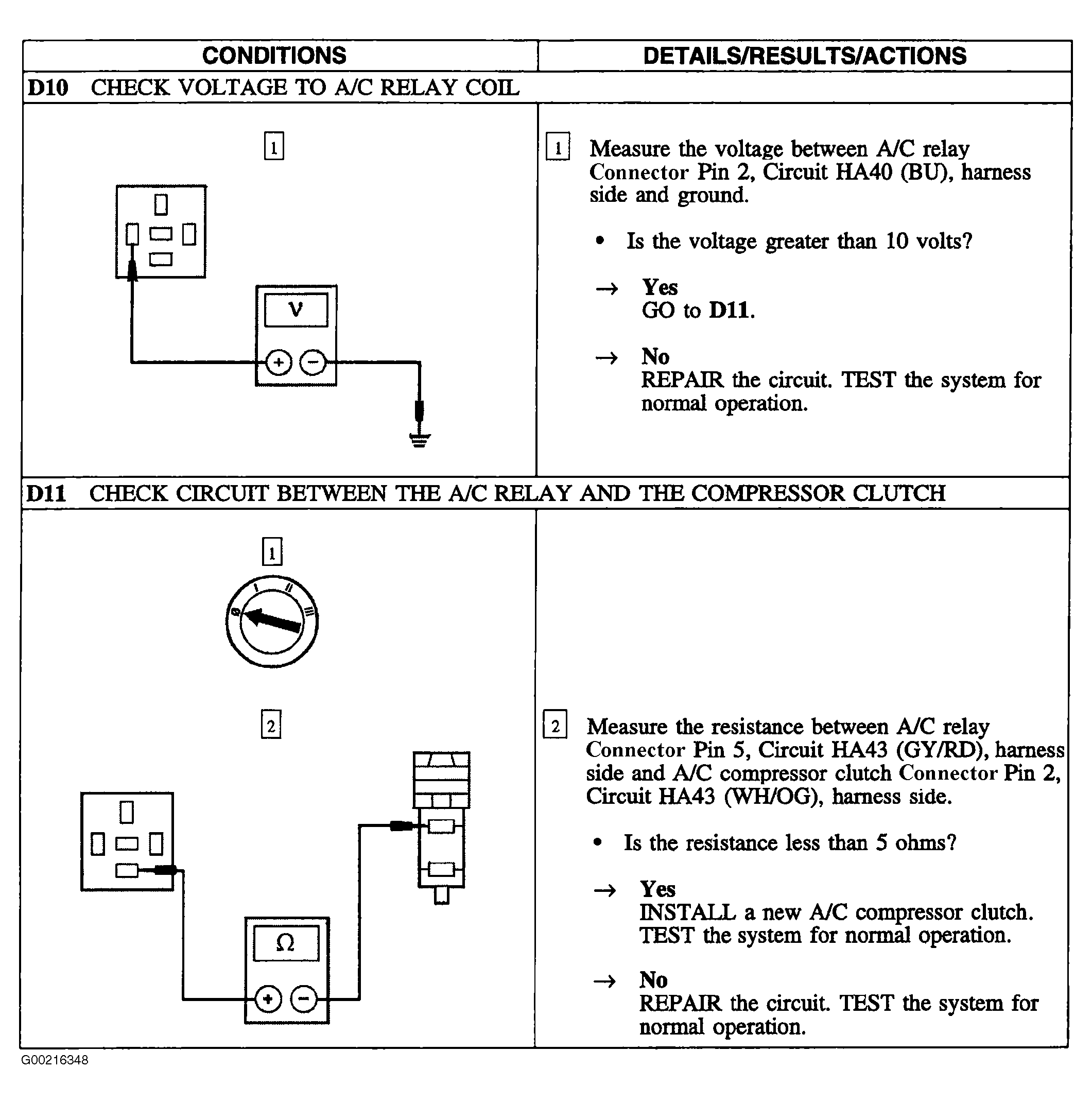

Fig 6: Test D (Steps D10-D11)

Courtesy of FORD MOTOR CO.

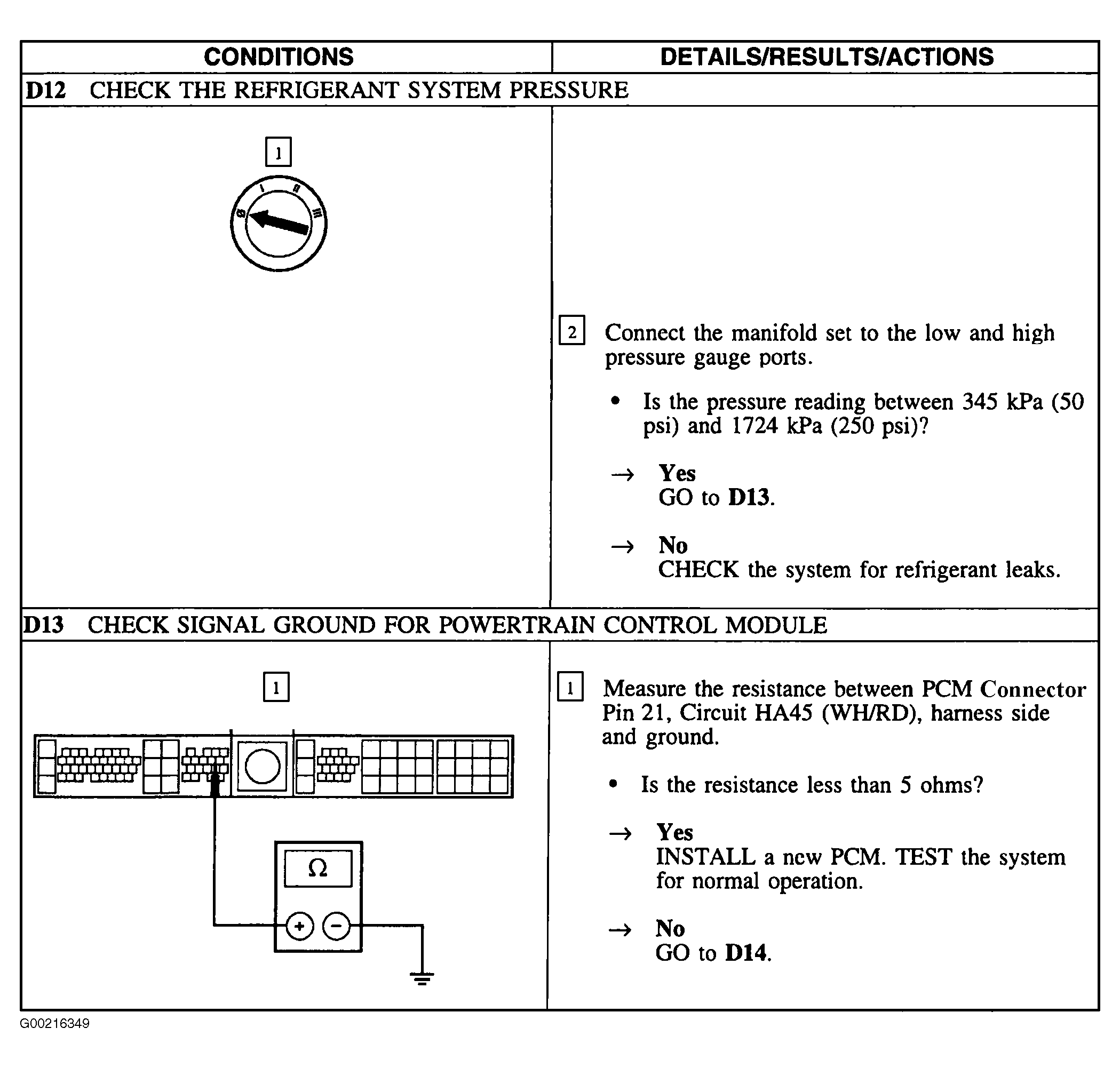

Fig 7: Test D (Steps D12-D13)

Courtesy of FORD MOTOR CO.

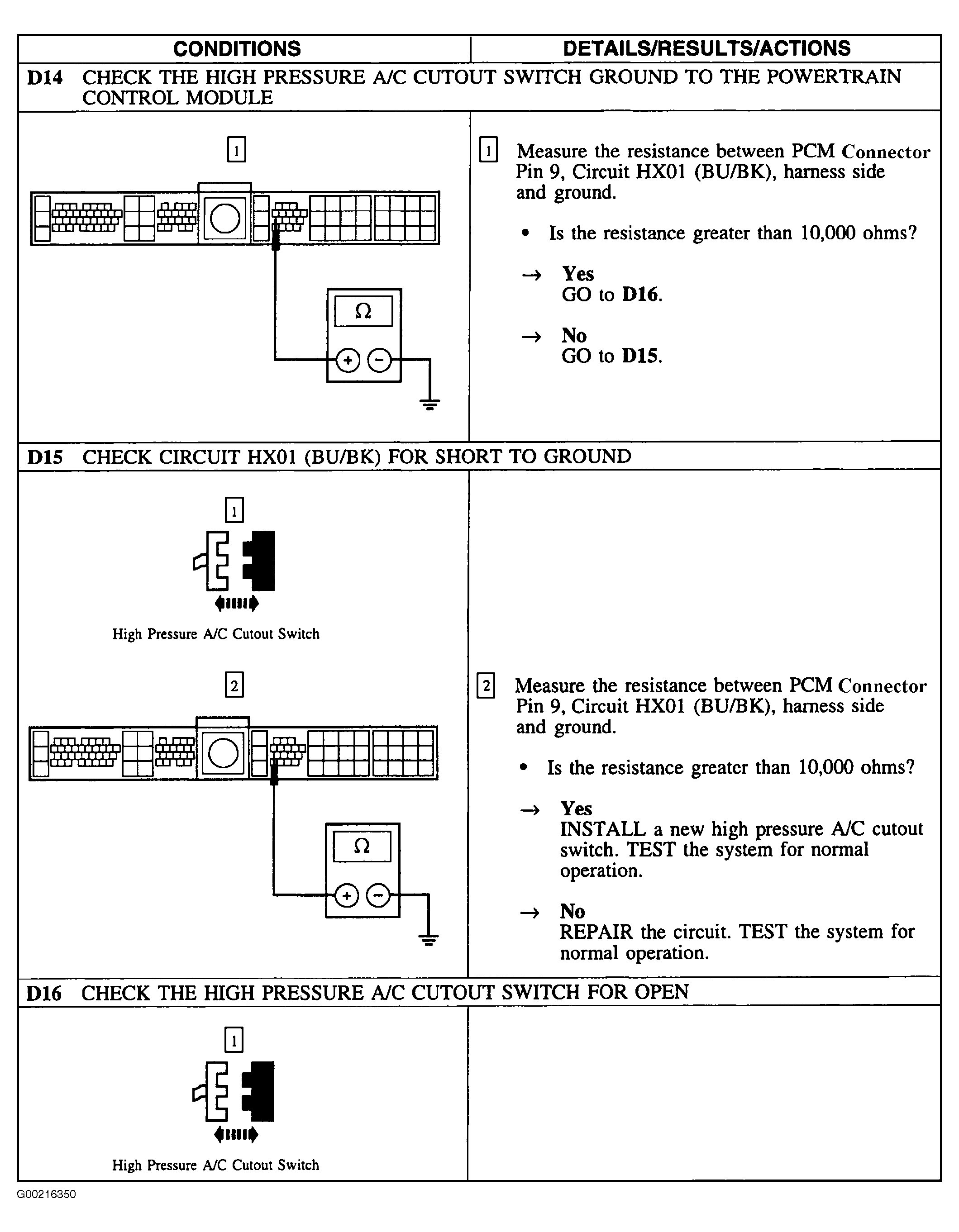

Fig 8: Test D (Steps D14-D16)

Courtesy of FORD MOTOR CO.

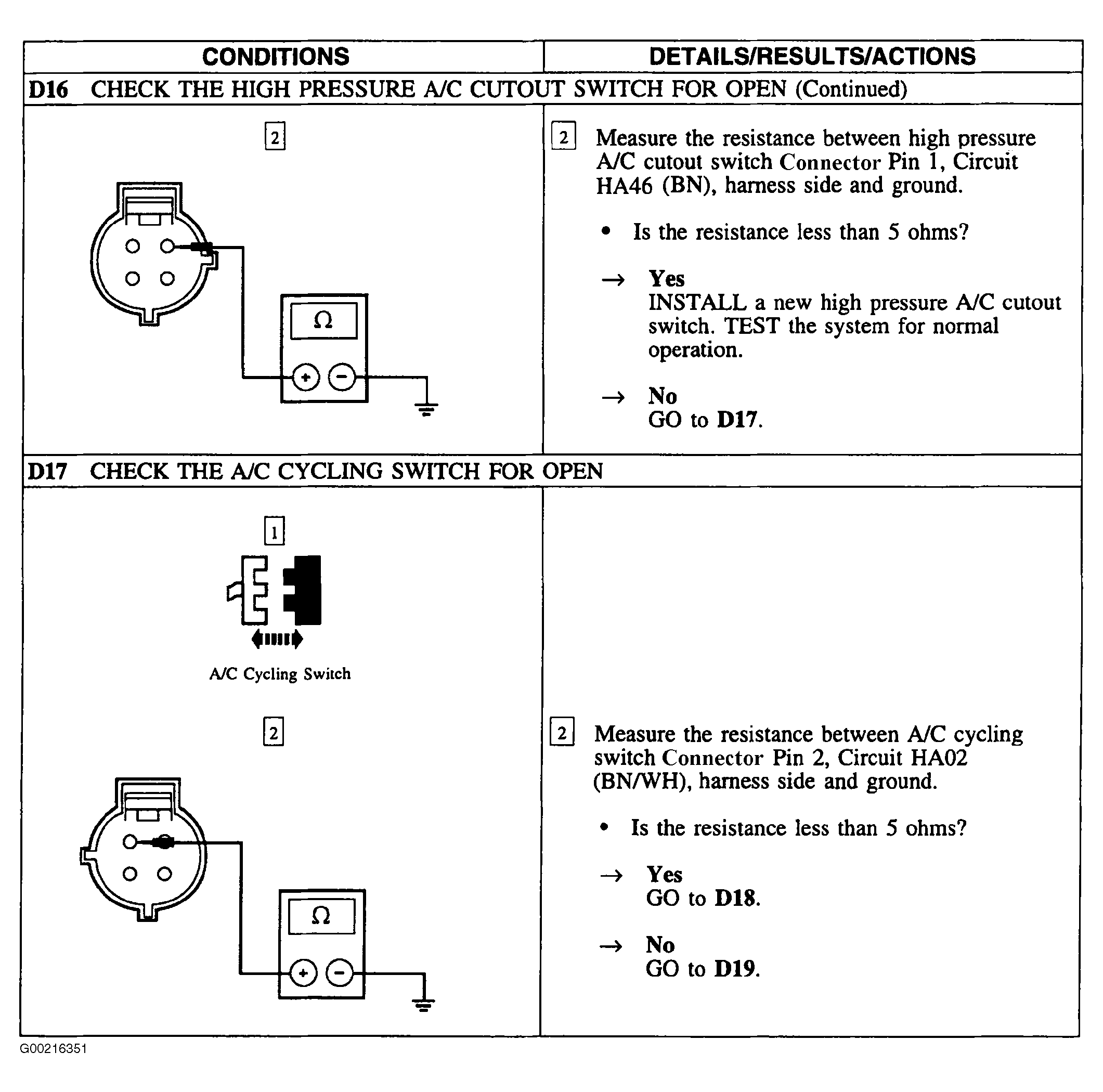

Fig 9: Test D (Steps D16 Cont.-D17)

Courtesy of FORD MOTOR CO.

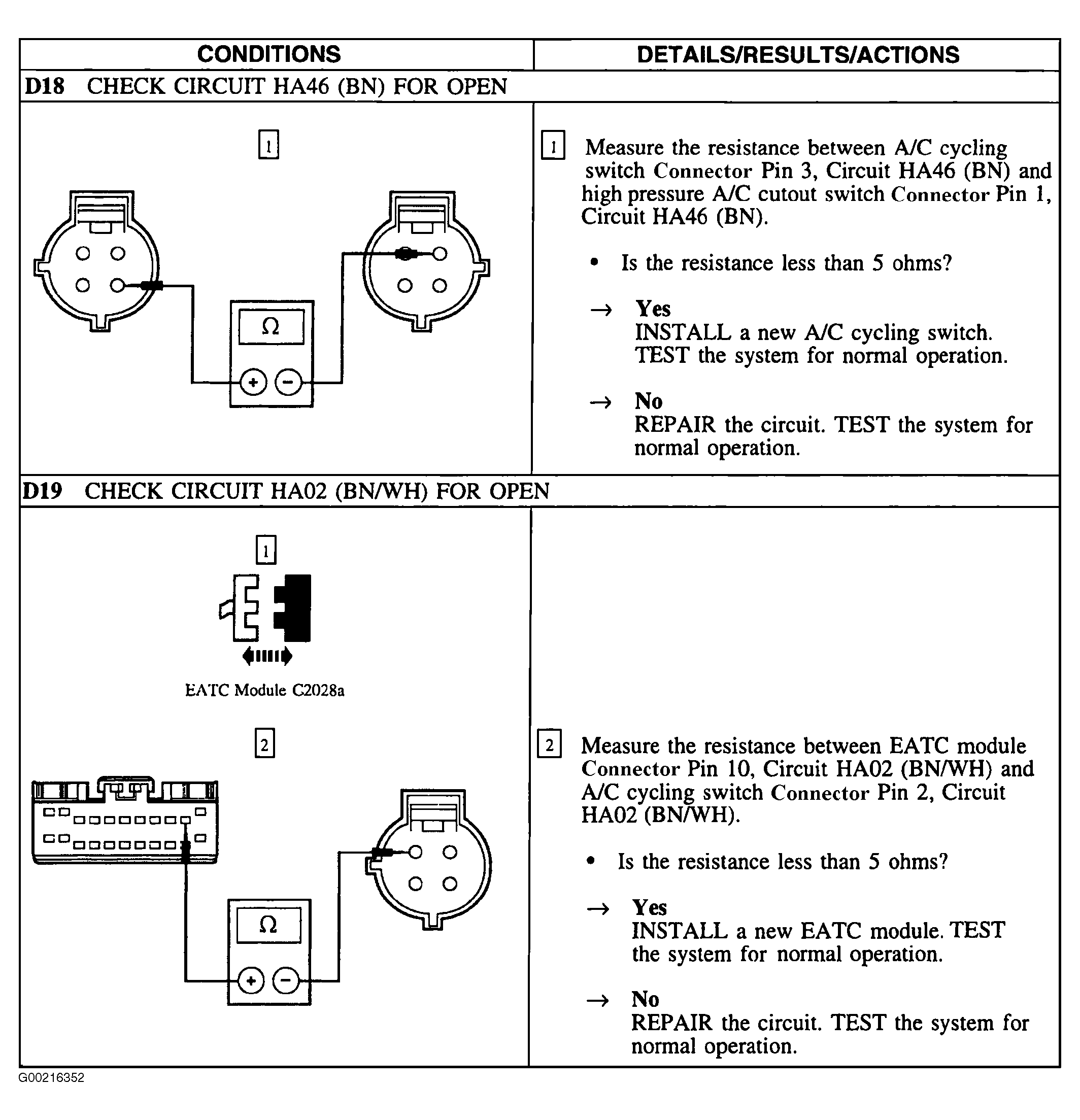

Fig 10: Test D (Steps D18-D19)

Courtesy of FORD MOTOR CO.
