Fuel Line Fittings-Push Connect: Disconnect

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before repairing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.
  1. Relieve the fuel pressure. For additional information, refer to FUEL SYSTEM PRESSURE RELEASE .
  2. Disconnect the safety clip from the male hose.

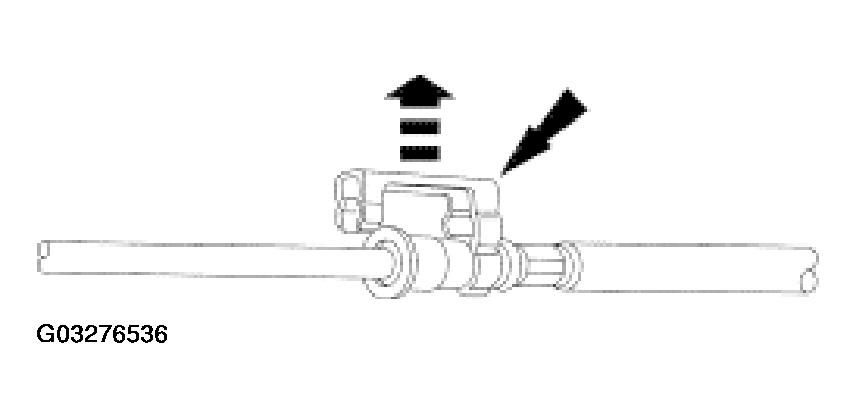

    Fig 1: Disconnecting Safety Clip From Male Hose
    G03276536Courtesy of FORD MOTOR CO.
  3. Install the special tool and push it into the fitting.

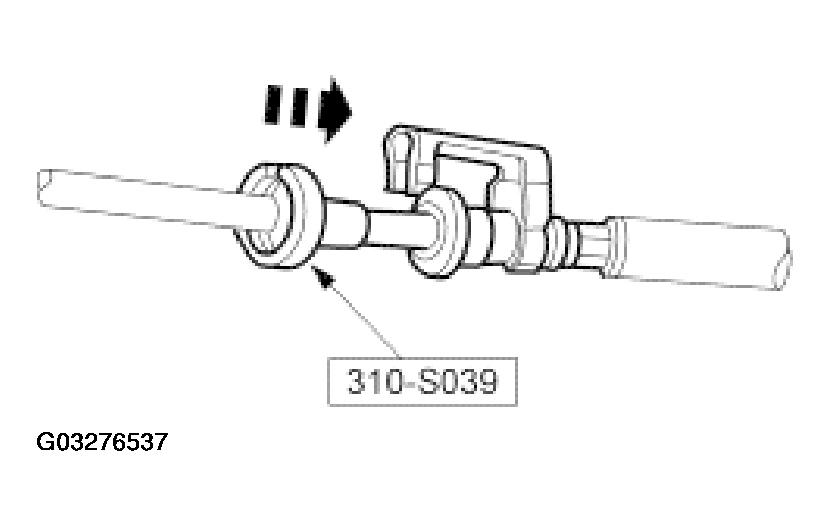

    Fig 2: Installing Special Tool And Push It Into Fitting
    G03276537Courtesy of FORD MOTOR CO.
  4. Separate the fittings.
    • Inspect for damage.
    • Clean the fittings.

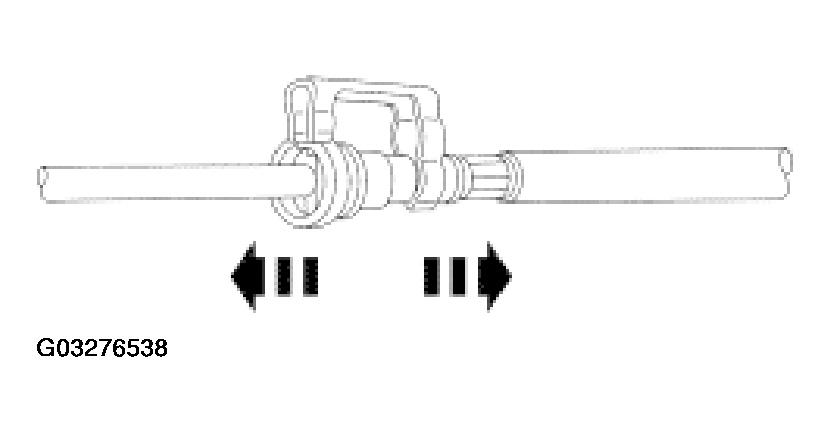

      • Fig 3: Separating Fitting
      G03276538Courtesy of FORD MOTOR CO.
