Input Shaft Bearing: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the input shaft bearing for wear or damage.
    2. CAUTION: To prevent damage, inspect the surface of the input shaft in the area of the bearing race to make sure it is smooth and free of burrs.
  2. Inspect the input shaft for damage or wear. For additional information, refer to MANUAL TRANSMISSION, CLUTCH & TRANSFER CASE - GENERAL INFORMATION .
  3. Remove and discard the front bearing oil scoop ring.
    Fig 1: Removing Front Bearing Oil Scoop Ring
    G03276272Courtesy of FORD MOTOR CO.
    4. CAUTION: Hold the input shaft so it does not fall.
    NOTE: Remove the input shaft bearing only if installing a new one.

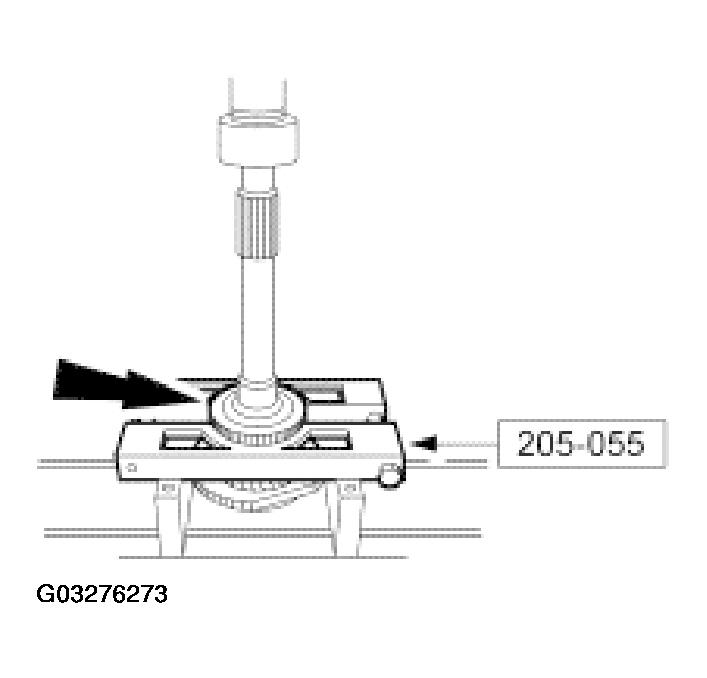

    Fig 2: Pressing Input Shaft Bearing From Input Shaft
    G03276273Courtesy of FORD MOTOR CO.
  4. Using the special tool, press the input shaft bearing from the input shaft.
