Exhaust Manifold - Inspection

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

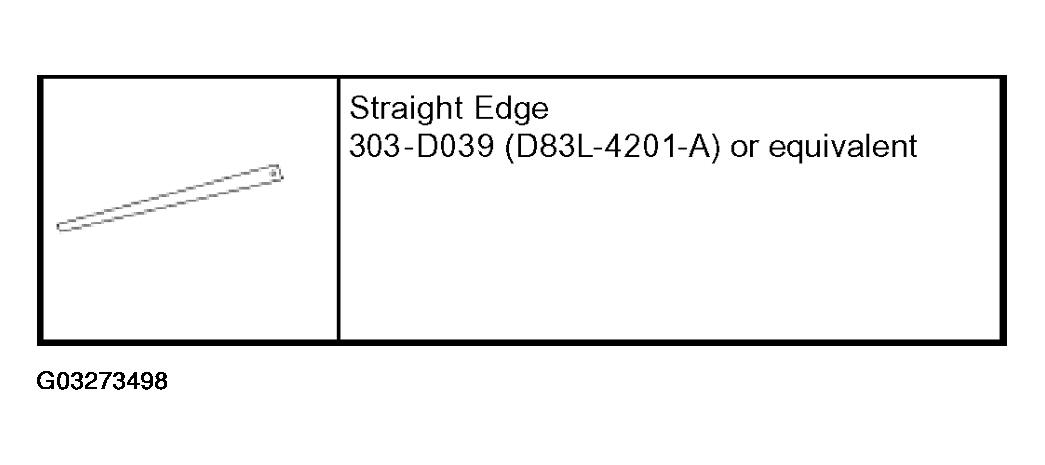

Fig 1: Identifying Special Tool
G03273498Courtesy of FORD MOTOR CO.
  1. Place a straight edge across the exhaust manifold flanges and check for warping with a feeler gauge.

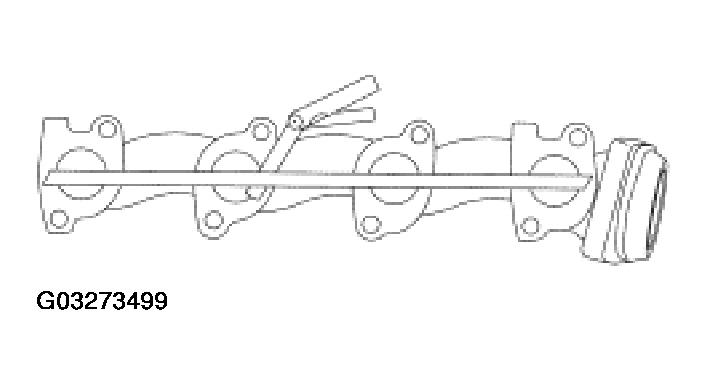

    Fig 2: Checking Exhaust Manifold For Warpage
    G03273499Courtesy of FORD MOTOR CO.
