In-line C213M, C213F

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

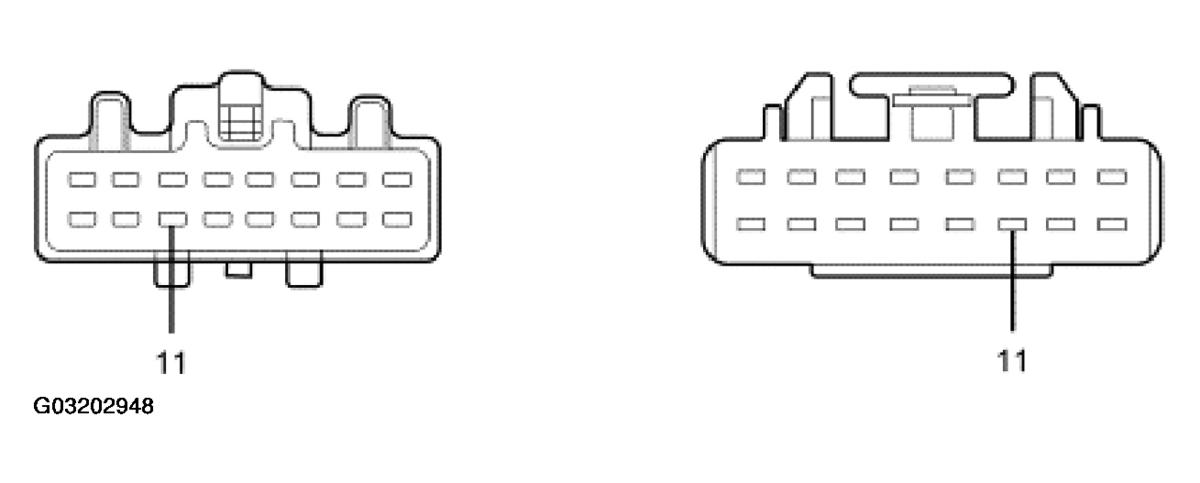

Fig 1: Identifying In-Line C213M, C213F Connector Pins
G03202948Courtesy of FORD MOTOR CO.
IN-LINE C213M, C213F PINS DESCRIPTION

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
11 4-HC1 (GY/RD) UBP communication circuit. Less than 5 ohms between the module connector, DLC or inline connector. Greater than 10,000 ohms to ground with all network modules disconnected.
