Center Imaging Amplifier C225

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

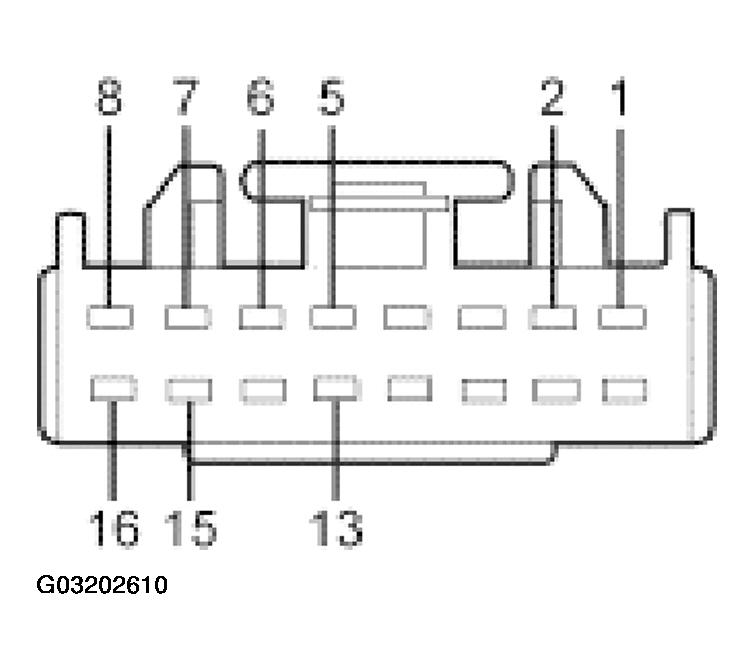

Fig 1: Identifying Center Imaging Amplifier C225 Connector Pinouts
G03202610Courtesy of FORD MOTOR CO.
CENTER IMAGING AMPLIFIER C225 CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 1-MD12 (WH) center imaging audio signal Less than 5 ohms between the audio unit and the center imaging amplifier. Greater than 10,000 ohms between the audio unit and ground.
2 2-MD12 (GY) center imaging audio return Less than 5 ohms between the audio unit and the center imaging amplifier. Greater than 10,000 ohms between the audio unit and ground.
5 8-MD31 (WH/GN) right center imaging speaker signal Less than 5 ohms between the speaker and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground.
6 10-MD31 (GY/OG) right center imaging speaker return Less than 5 ohms between the speaker and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground.
7 8-MD30 (WH/BU) left center imaging speaker return Less than 5 ohms between the speaker and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground.
8 10-MD30 (GY/VT) left center imaging speaker signal Less than 5 ohms between the speaker and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground.
13 7-MD12 (YE) center imaging amplifier enable Less than 5 ohms between the audio unit and the center imaging amplifier. Greater than 10,000 ohms between the center imaging amplifier and ground.
15 31-MD12 (BK/YE) ground circuit Less than 5 ohms between the center imaging amplifier and ground.
16 29-MD12 (OG/YE) B+ battery feed Greater than 10 volts between the center imaging amplifier and ground.
