Air Conditioning Line (Peanut) Fitting: Disconnect

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Support the female fitting with a wrench to prevent the tubes from twisting.

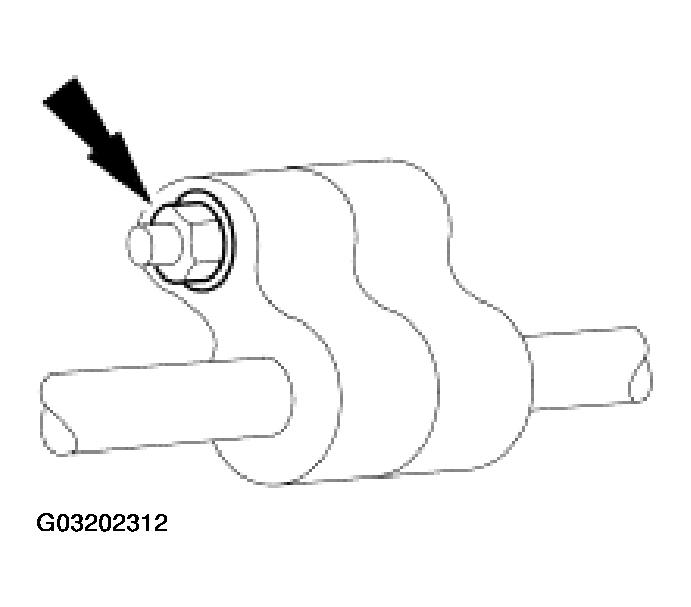

Fig 1: Removing Nut From Peanut Fitting

Courtesy of FORD MOTOR CO.

Remove the nut from the peanut fitting.
Pull the peanut fitting apart.

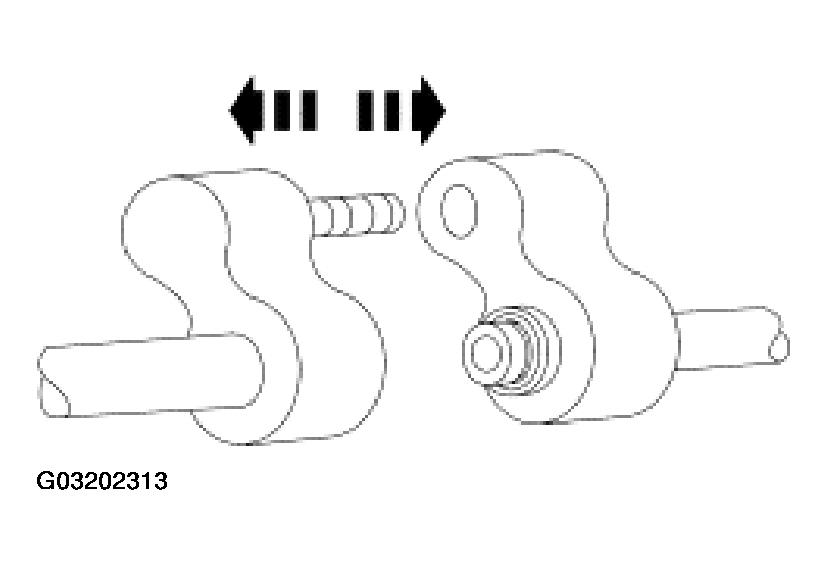

Fig 2: Pulling Peanut Fitting Apart
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal tools to remove the O-ring seal. They can cause axial scratches across the O-ring seal groove, resulting in refrigerant leaks.

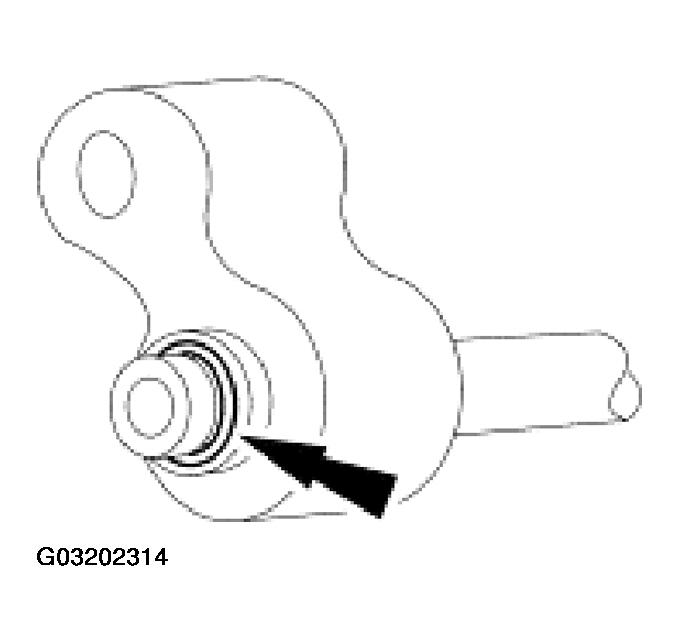

Fig 3: Removing O-Ring Seal With Non-Metallic Tool

Courtesy of FORD MOTOR CO.

Remove the O-ring seal with a non-metallic tool.
