Anti-Lock Brake System (ABS) Connector C135
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

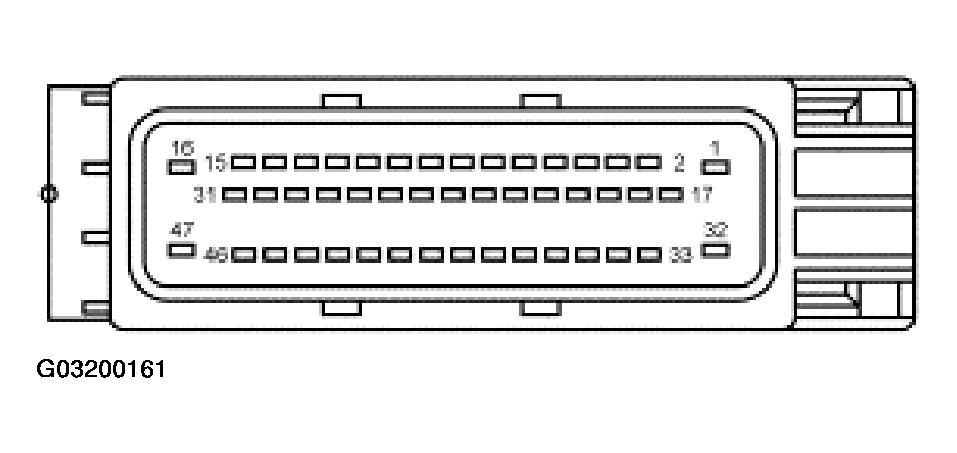

C135 CONNECTOR REFERENCE CHART
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 30-CF13 (RD) HCU pump power | B+ voltage at all times. |
| 2 | 4-EE6 (GY) ISO bus | ISO communication when connected. |
| 3 | 8-CC18 (WH/RD) Steering wheel rotation sensor angle 1 | PID value when connected 0°to 45°. |
| 4 | 20-CF6A (PK/YE) Ignition power | B+ voltage with key ON. |
| 5 | 9-CC1 (BN/RD) Steering wheel rotation/accelerometer/yaw rate sensor return | Less than 5 ohms to chassis ground, 0 volts. |
| 6 | 10-CC17 (GY) Steering wheel rotation sensor angle 2 | PID value when connected 0°to -45°. |
| 7 | 7-CC1 (YE/RD) Steering wheel rotation sensor/accelerometer/yaw rate sensor power | Greater than 9 volts with ignition in START or RUN. |
| 8 | Not used | - |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | Not used | - |
| 12 | 4-CF6 (GY) SCP Bus (+) | SCP communication high current when connected. |
| 13 | 31S-CF45 (BK/GN) Advance Trac®/IVD OFF indicator | Zero volts when Advance Trac®/IVD switch is OFF. |
| 14 | 5-CF6(BU)SCP Bus (-) | SCP communication low current when connected. |
| 15 | Not used | - |
| 16 | 31-CF6A (BK/YE) ABS module ground | Zero volts, less than five ohms to chassis ground. |
| 17 | 8-CF68 (WH/RD) Active brake booster power | B+ with key ON. |
| 18 | 7-CF64 (YE/BK) Brake pressure transducer power | Five volts with ignition in RUN. |
| 19 | 9-CF64 (BN/YE) Brake pressure transducer ground | Zero volts, less than five ohms to chassis ground. |
| 20 | 8-CF64 (WH/BK) Brake pressure transducer signal | Zero to five volts, varies proportional to brake pressure. |
| 21 | Not used | - |
| 22 | 8-CF63 (WH/GN) Navigation system signal | Signal varies with vehicle speed. |
| 23 | Not used | - |
| 24 | 9-CF65 (BN/WH) Pedal travel switch (PTS) switch ground | Zero volts, less than five ohms to chassis ground. |
| 25 | 9-CF66 (BN/BU) Accelerometer/yaw rate sensor CAN Bus (-) | CAN communication low current when connected. |
| 26 | 7-CF65 (YE/VT) Pedal travel switch (PTS) switch power | Five volts with ignition in RUN. |
| 27 | 8-CF51 (WH/GN) Brake pedal force switch normally open (NO) | Open circuit without brake pedal applied. |
| 28 | 9-CF51 (BN/GN) Brake pedal force switch signal | Zero to five volts varies with brake pedal application. |
| 29 | 8-CF66 (WH/BU) Accelerometer/yaw rate sensor CAN Bus (+) | CAN communication high current when connected. |
| 30 | 10-CF51 (GY/OG) Brake pedal force switch normally closed (NC) | Closed circuit without brake pedal applied. |
| 31 | 9-CF68 (BN/RD) Active brake booster power | Five volts with ignition in RUN |
| 32 | 30-CF6A (RD) HCU solenoid valves power | B+ voltage at all times. |
| 33 | 8-CF38 (WH/RD) RF active wheel speed sensor ground | PID value 0 to 255 km/h (0 to 158 mph); 0 volts, less than 5 ohms to chassis ground when connected. |
| 34 | 7-CF38 (YE/RD) RF active wheel speed sensor power | PID value 0 to 255 km/h (0 to 158 mph); 0 volts, less than 5 ohms to chassis ground when connected. |
| 35 | Not used | - |
| 36 | 7-CF34 (YE/BU) LR active wheel speed sensor power | PID value 0 to 255 km/h (0 to 158 mph); 0 volts, less than 5 ohms to chassis ground when connected. |
| 37 | 8-CF34 (WH/BU) LR active wheel speed sensor ground | PID value 0 to 255 km/h (0 to 158 mph); 0 volts, less than 5 ohms to chassis ground when connected. |
| 38 | 8-CF54 (WH/VT) Traction Control Actuator/Advance Trac®/IVD switch input | Twelve volts with Advance Trac®/IVD switch ON. |
| 39 | 8-GN14 (WH/BK) Backup aid signal | Five-volt reference signal to backup aid with transmission selector in R |
| 40 | 8-CF65 (WH/VT) Pedal travel switch (PTS) switch signal | Zero to five volts varies with pedal travel switch position. |
| 41 | 29-CF1 (OG/BU) Brake ON/OFF switch input | Brake applied, 0 volts/brake not applied, 12 volts. |
| 42 | 8-CF40 (WH/GN) RR active wheel speed sensor ground | PID value 0 to 255 km/h (0 to 158 mph); 0 volts, less than 5 ohms to chassis ground when connected. |
| 43 | 7-CF40 (YE/GN) RR active wheel speed sensor power | PID value 0 to 255 km/h (0 to 158 mph); 0 volts, less than 5 ohms to chassis ground when connected. |
| 44 | 29S-CF2 (OG/BU) Driver brake apply signal power | Brake applied 12 volts to trailer tow relay (if equipped). |
| 45 | 7-CF32 (YE/BR) LF active wheel speed sensor power | PID value 0 to 255 km/h (0 to 158 mph); 0 volts, less than 5 ohms to chassis ground when connected. |
| 46 | 8-CF32 (WH/BR) LF active wheel speed sensor ground | PID value 0 to 255 km/h (0 to 158 mph); 0 volts, less than 5 ohms to chassis ground when connected. |
| 47 | 31-CF6B (BK/YE) ABS module ground | Zero volts, less than five ohms to chassis ground. |
