Mass Air Flow (MAF) Sensor: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

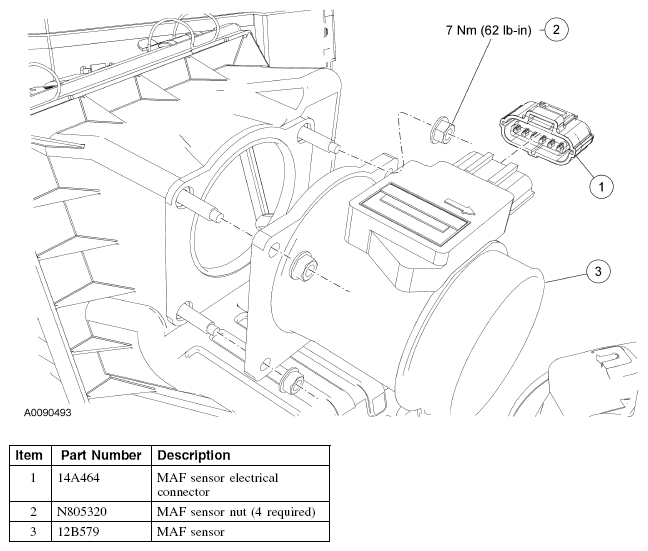

Fig 1: Mass Air Flow (MAF) Sensor With Torque Specification
G04619722Courtesy of FORD MOTOR CO.
