Driver Climate Controlled Seat Module (CCSM) C3031b

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

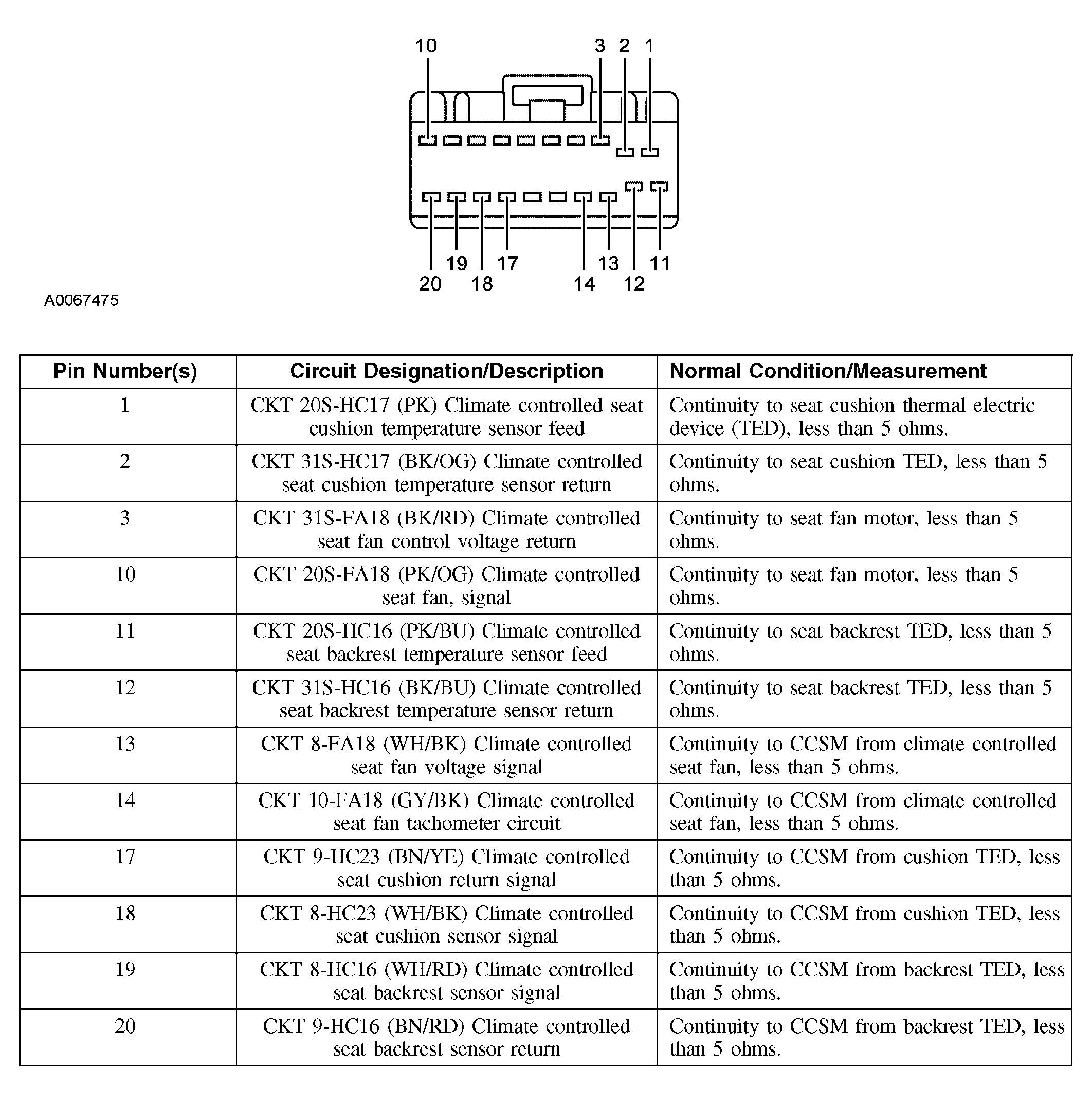

Fig 1: Identifying Driver Climate Controlled Seat Module (CCSM) C3031b Connector Pins
G03999362Courtesy of FORD MOTOR CO.
