Steering Column Position Sensor C222

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

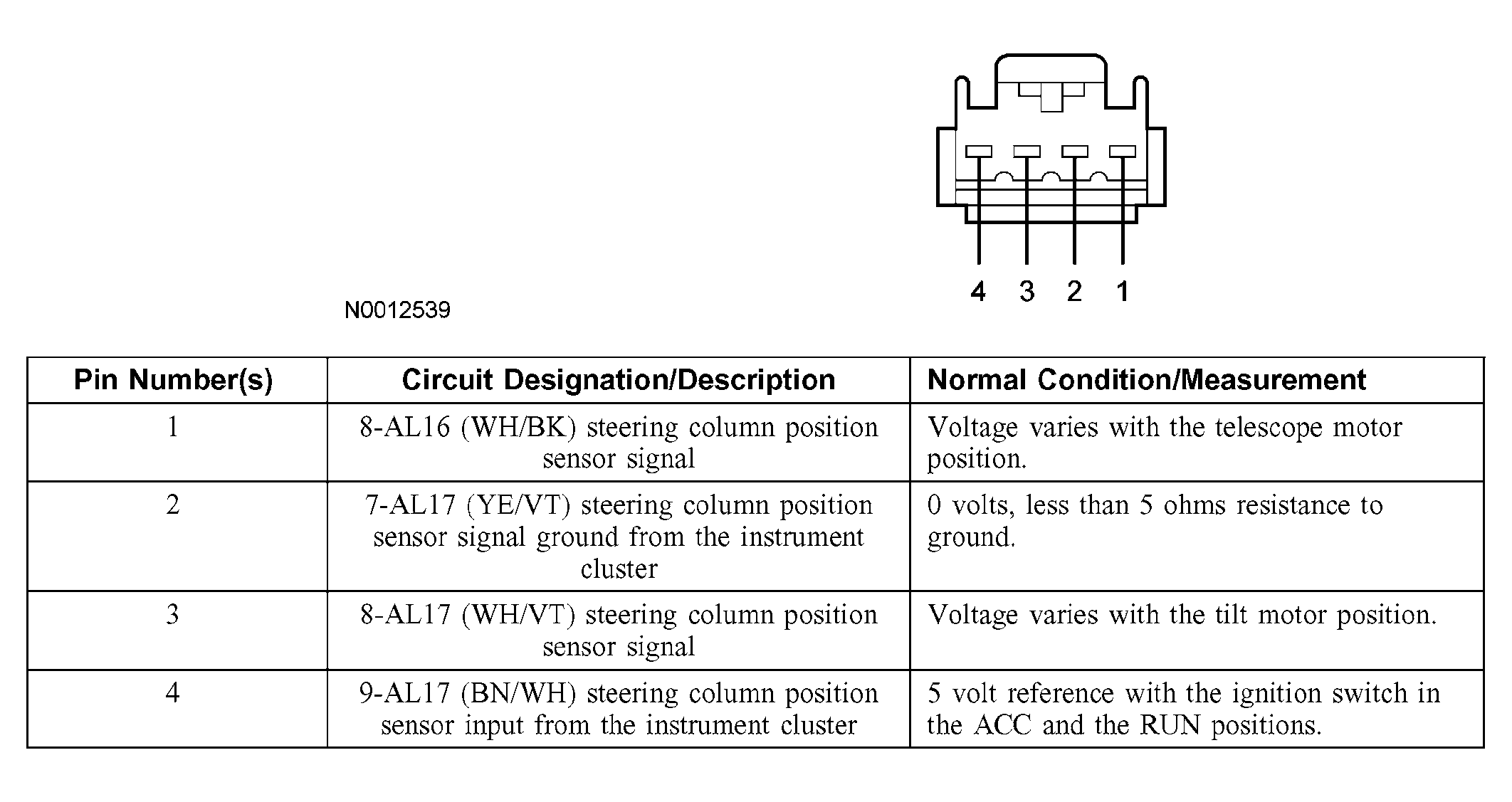

Fig 1: Identifying Steering Column Position Sensor C222 Connector Terminals
G03995648Courtesy of FORD MOTOR CO.
