Removal And Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel finish panel screws.

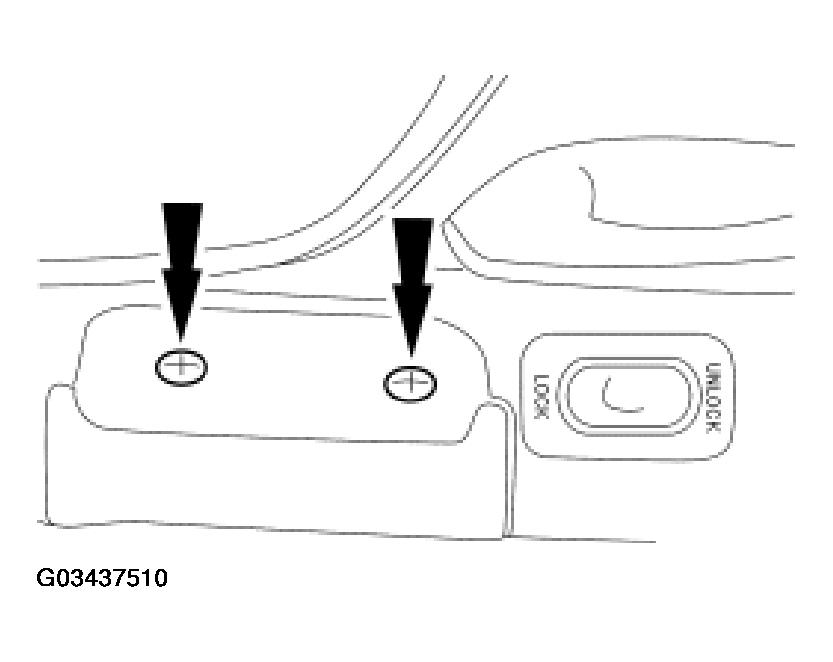

    Fig 1: Removing Door Trim Panel Finish Panel Screws
    G03437510Courtesy of FORD MOTOR CO.
  2. Reposition the door trim panel finish panel.

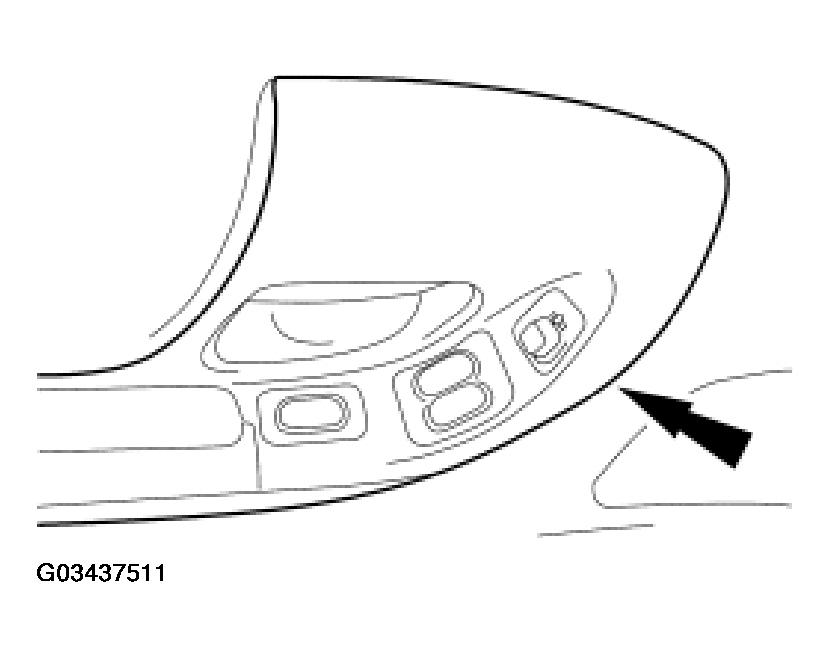

    Fig 2: Repositioning Door Trim Panel Finish Panel
    G03437511Courtesy of FORD MOTOR CO.
  3. Remove the window regulator control switch from the door trim panel finish panel.
    1. Remove the screws.
    2. Remove the window regulator control switch plate from the switch.
    3. Remove the window regulator switch.

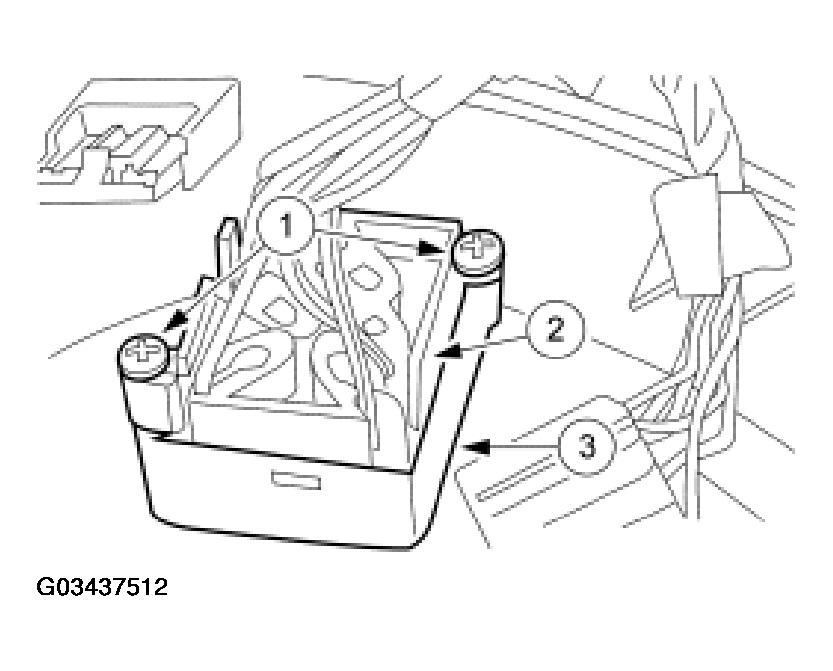

    Fig 3: Removing Window Regulator Control Switch
    G03437512Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.

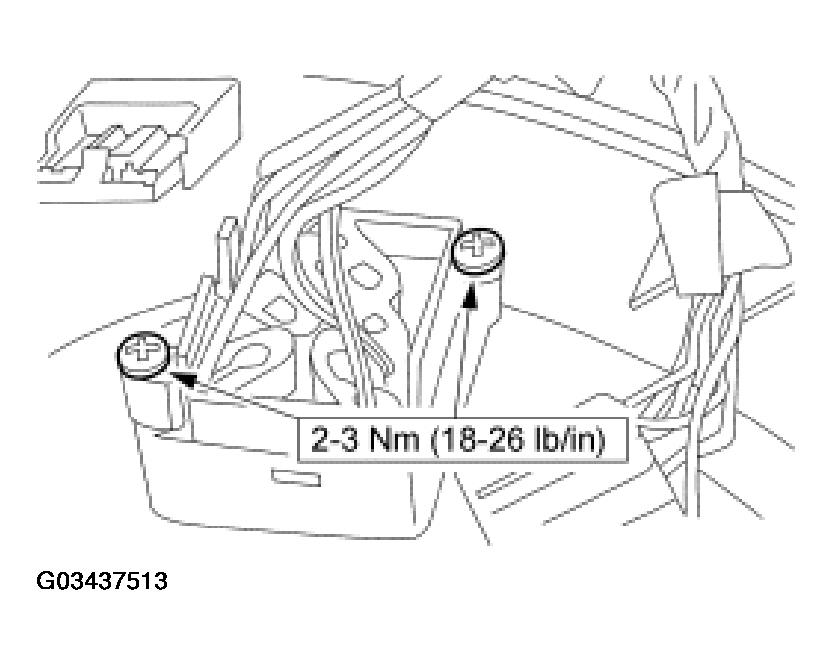

    Fig 4: Installing Window Regulator Control Switch
    G03437513Courtesy of FORD MOTOR CO.
