Ignition Lock Cylinder: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

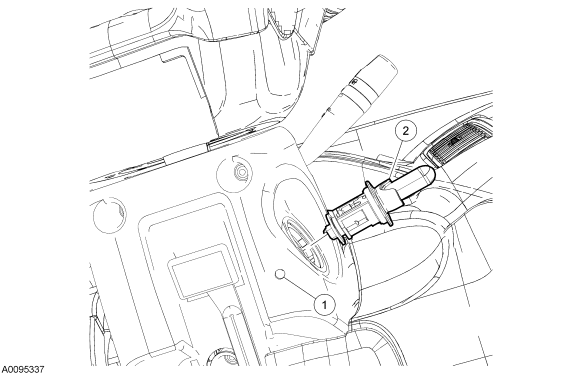

Fig 1: Exploded View Of Ignition Lock Cylinder & Release Button
GF0023832Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Ignition lock cylinder release button (part of F3677)
2 F3677 Ignition lock cylinder
