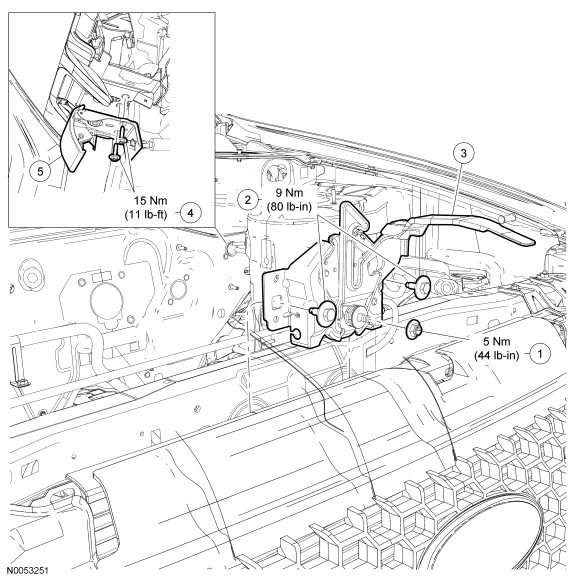

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W707137-S441 | Hood latch nut |
| 2 | W707398-S307 | Hood latch bolts (2 required) |
| 3 | 16700 | Hood latch |
| 4 | W707399-S439 | Hood latch release handle screws (2 required) |
| 5 | 16B975 | Hood latch release handle and cable assembly |
- For additional information, refer to the following procedures.
