Belt Adjustment: Notes
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2001 Mercury Sable, 2001 Mercury Grand Marquis, 2001 Mercury Cougar, 2001 Lincoln Town Car, and 2001 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

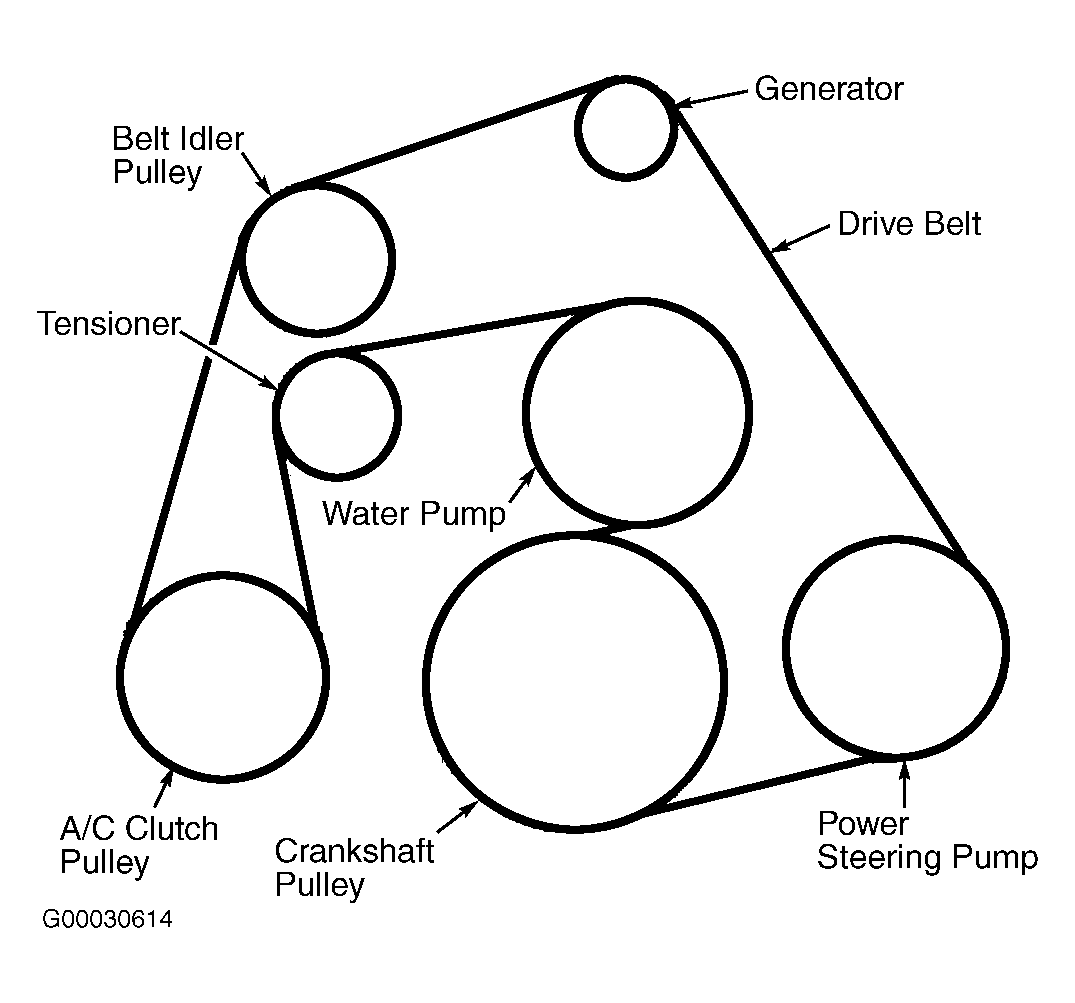

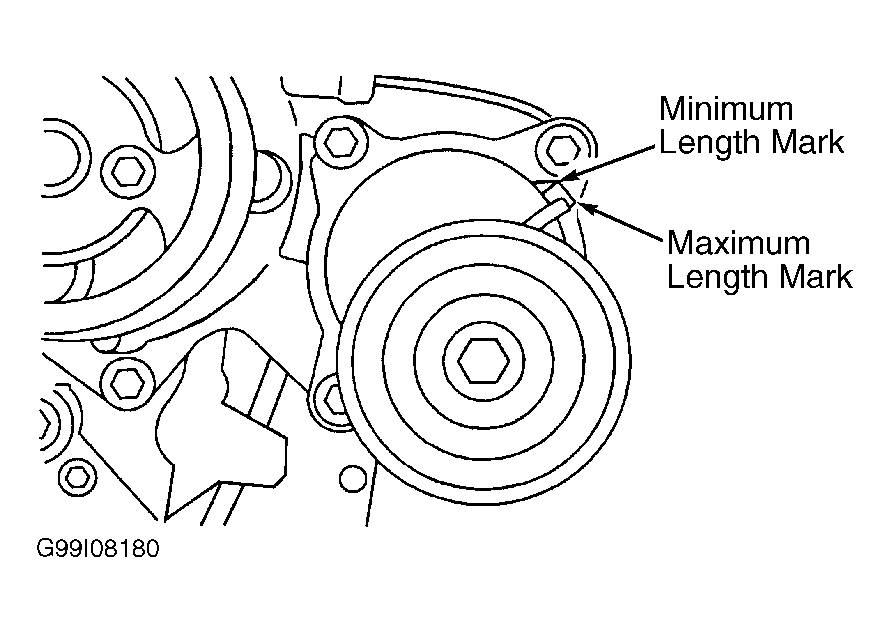

Tensioners are used to automatically adjust belt tension to specification. Tension is within specification, if tensioner pointer is within indicator markings. Check belt for fraying. If fraying exists, ensure belt and tensioner are properly aligned. See Figure. Tensioners will contain a belt-wear indicator. See Figure-Figure . If tensioner reaches travel limit, as indicated by marks on tensioner, replace belt. Ensure serpentine belts are properly installed. See Figure-Figure .
