Preliminary Procedure

WARNING: This page is about a different car, the 1997 Lincoln Mark VIII. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify customer's complaint by operating PATS. Ensure electronically coded ignition key is being used. Check for damaged wiring or connectors at Steering Column/Ignition/Lighting (SCIL) module. The SCIL module is located behind passenger's side of instrument panel, to the right of glove box. SCIL module contains one 16-pin connector, one 16-pin connector and two 26-pin connectors.

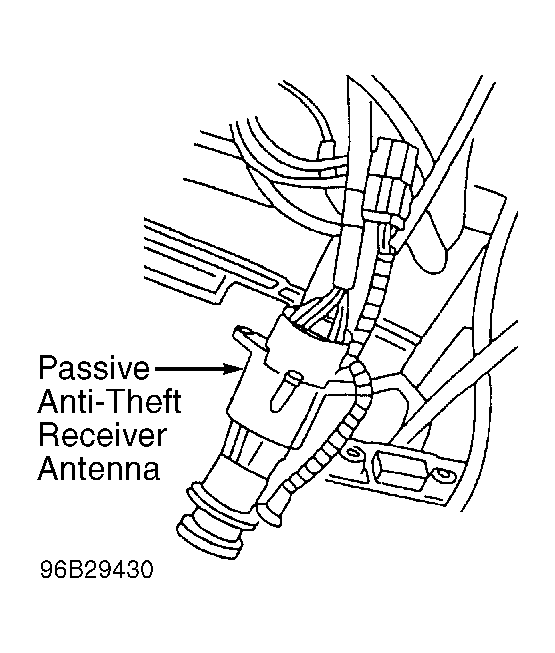

  2. Check for damaged wiring or connectors at passive anti-theft receiver antenna located at ignition lock cylinder. See Figure . Repair components if damaged. If all components are okay, proce ed to retrieving diagnostic trouble codes.
