Low-Intermediate Servo: Reassembly

Lubricate NEW seals with petroleum jelly and install on piston. Install front retaining clip on rod. Install servo piston spring and piston on rod. Compress assembly and install rear retaining clip on rod. Install servo cover seal and gasket. Installed assembled components into servo cover. Install piston return spring.

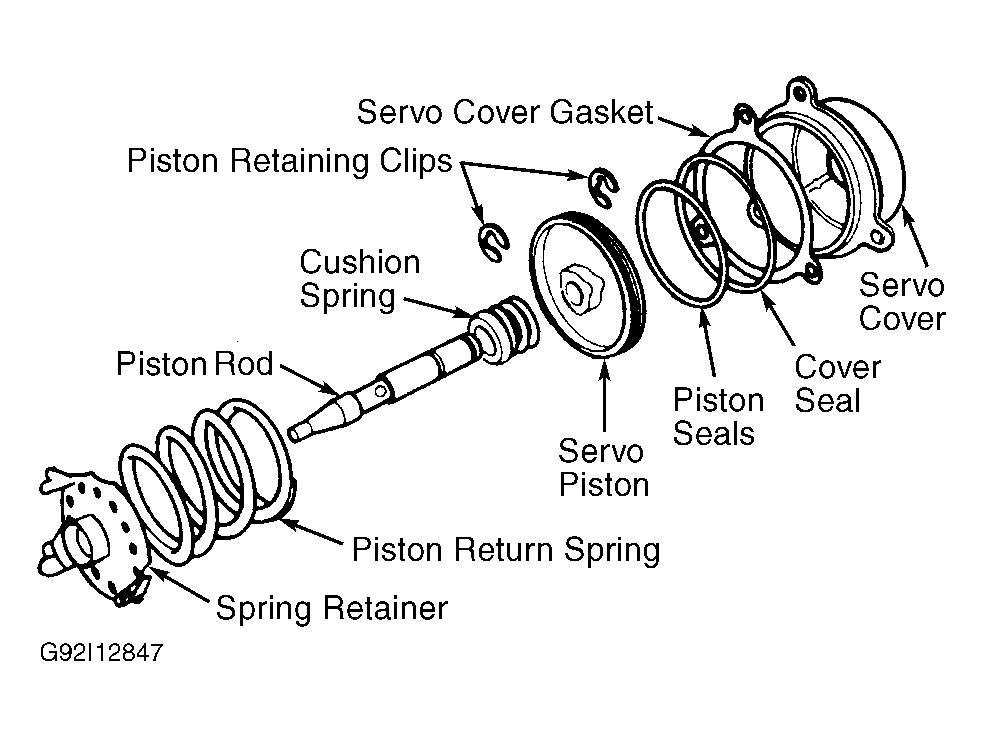

Fig 1: Exploded View Of Low-Intermediate Servo
G92I12847Courtesy of FORD MOTOR CO.
