Driver-Side Air Bag Module: Installation

WARNING: This page is about a different car, the 1997 Mercury Sable and 1997 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

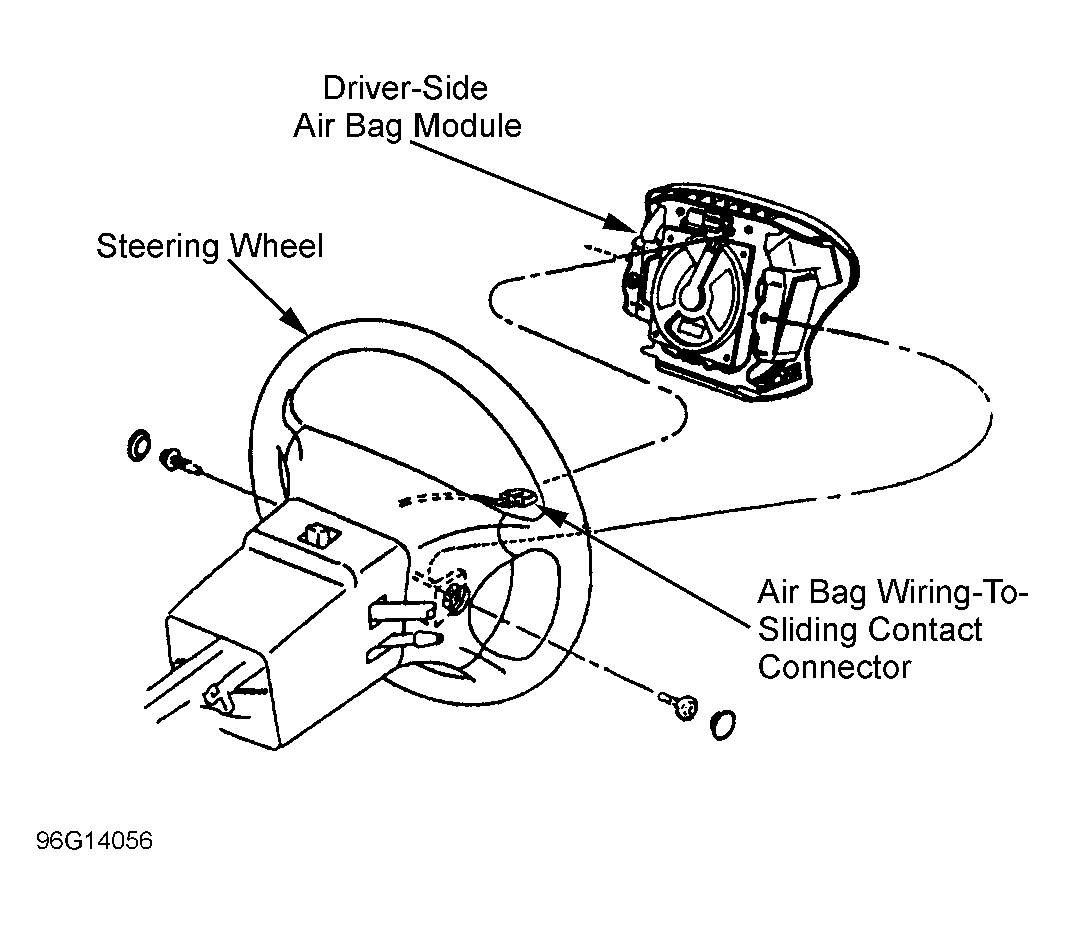

Connect air bag module wiring connector to clockspring connector. Position air bag module to steering wheel and secure with screw and washer assemblies. See Figure . Tighten air bag module screws to specification. See TORQUE SPECIFICATIONS  . Install steering wheel spoke covers. Activate SRS. Ensure system is functioning properly. See SYSTEM OPERATION CHECK  .
