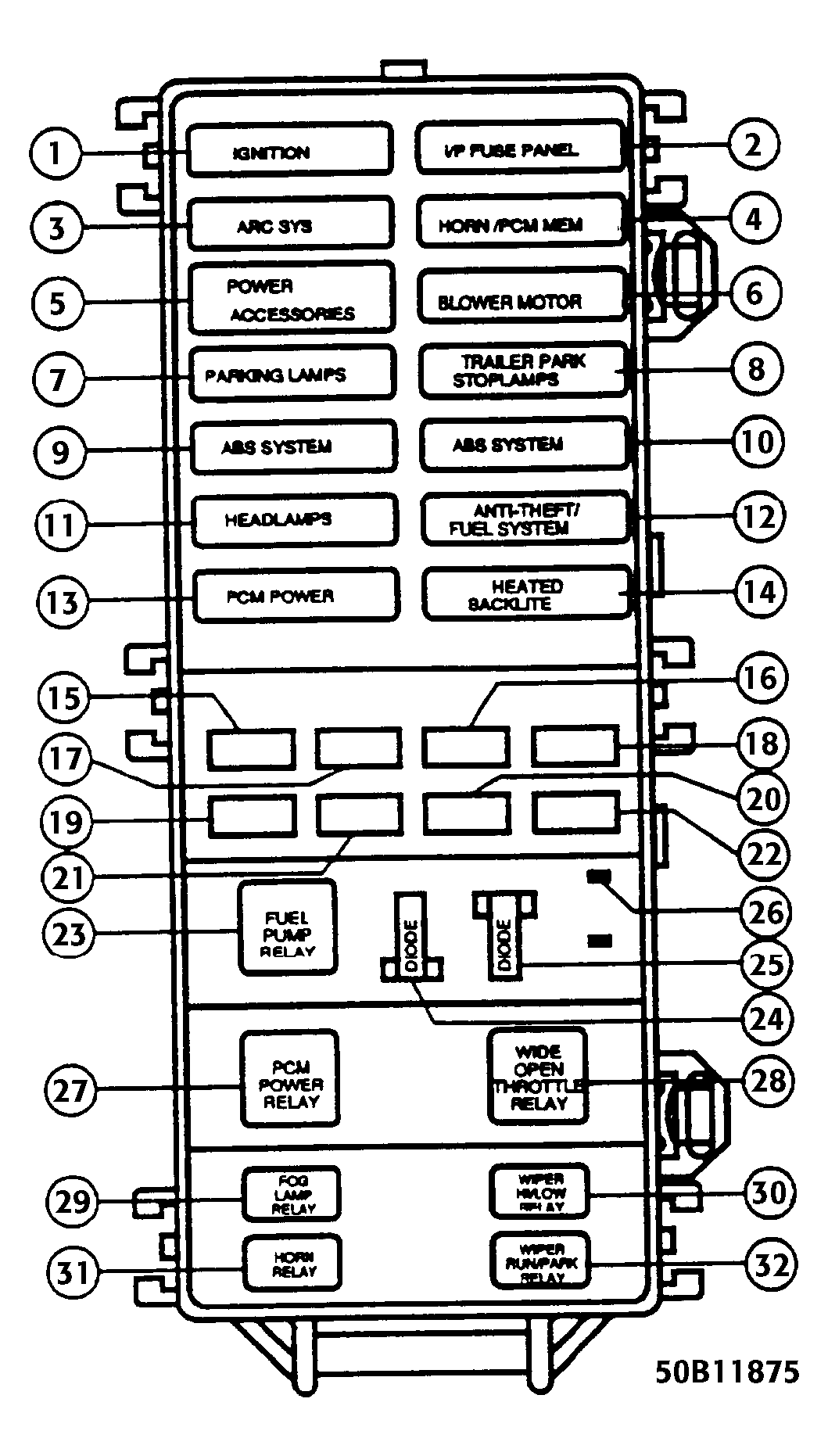

Power Distribution Box Identification (1995)
WARNING:
Always disconnect battery ground cable before servicing high-current fuses. It is recommended that high-current fuses be replaced by a qualified technician.
Fuse & Circuit Breaker Identification
- 1 - 60 Amp (Blue) Ignition
- 2 - 60 Amp (Blue) Fuse Panel
- 3 - 50 Amp (Red) Automatic Ride Control Suspension (If Equipped)
- 4 - 20 Amp (Yellow) PCM Power, Horn
- 5 - 30 Amp (Circuit Breaker) Power Locks, Power Windows, Power Seats
- 6 - 50 Amp (Red) Blower Motor
- 7 - 20 Amp (Yellow) Parking Lamps
- 8 - 20 Amp (Yellow) Trailer Park/Stop Lamps (With Trailer Package)
- 9 - 30 Amp (Green) ABS System
- 10 - 30 Amp (Green) ABS System
- 11 - 20 Amp (Yellow) Headlights
- 12 - 20 Amp (Yellow) Fuel System, Anti-Theft System
- 13 - 30 Amp (Green) PCM Power
- 14 - 30 Amp (Green) Rear Window Defogger
- 15 - 15 Amp (Blue) Foglights, Offroad Lights, DRL System
- 16 - 20 Amp (Yellow) 4 Wheel Drive System
- 17 - 15 Amp (Blue) Alternator
- 18 - 15 Amp (Blue) Pusher Fan
- 19 - 10 Amp (Red) Air Bag System
- 20 - 30 Amp (Green) Power Point
- 21 - 15 Amp (Blue) Rear Wiper
- 22 - 30 Amp (Green) JBL System
- 23 - Fuel Pump Relay
- 24 - Diode Rear Wheel Anti-Lock
- 25 - Diode PCM
- 26 - Diode ABS
- 27 - PCM Power Relay
- 28 - W.A.C. Relay
- 29 - Fog Lamp Relay
- 30 - Wiper Hi-Lo Relay
- 31 - Horn Relay
- 32 - Wiper Run Relay
