Diagnostic Trouble Code (DTC) Ref Charts (Codes PO102-PO305)

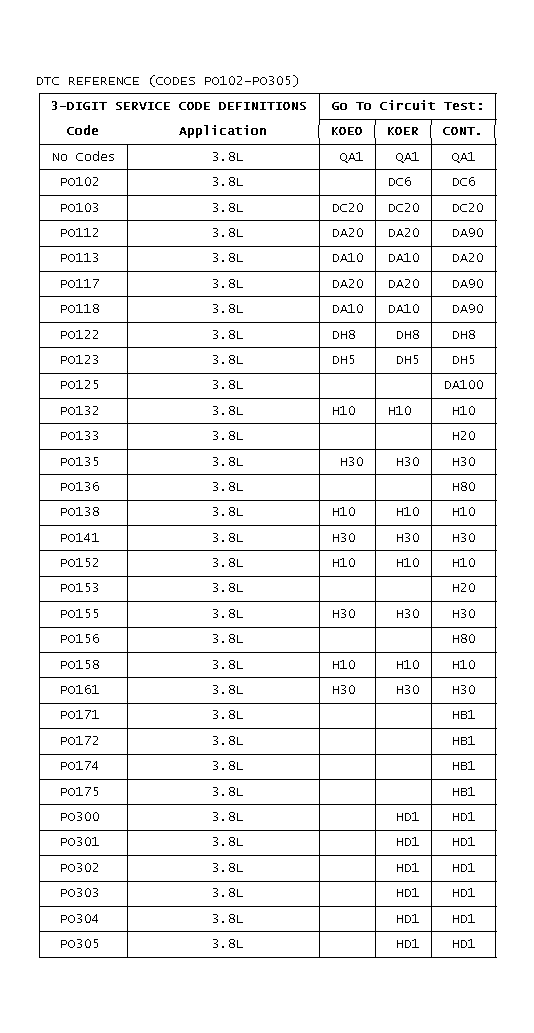

Fig 1: DTC REFERENCE (CODES PO102-PO305)

GB0049151
