Fuel Delivery: Notes

Major components of the fuel delivery system are an electric fuel pump, fuel supply and return lines, a pressure regulator, fuel rail, and fuel injectors. See Fig 1.

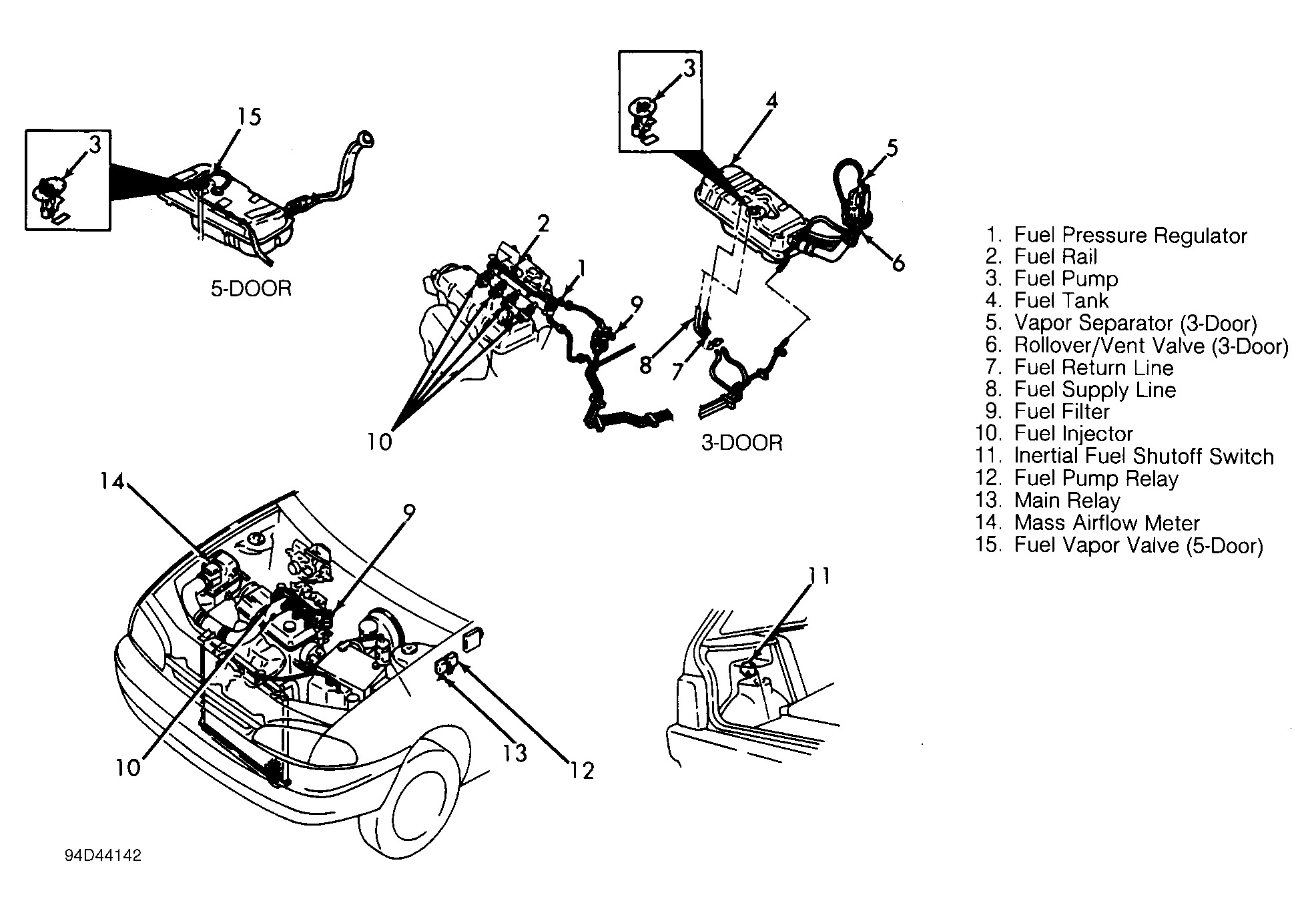

Fig 1: Locating Fuel Delivery System Components
G94D44142Courtesy of FORD MOTOR CO.
