Adjusting Front Riding Height

Front riding height is adjusted by changing height sensor link. See FRONT RIDING HEIGHT SENSOR LINK DIMENSIONS (CONTINENTAL) table. See Fig 1.
When removing front link, carefully pry it off using a wide-blade screwdriver. When installing link, support height sensor from behind to prevent sensor damage. Any front link change must be made with reference to link which is to be removed.

FRONT RIDING HEIGHT SENSOR LINK DIMENSIONS (CONTINENTAL)

Left Part No. ⁽¹⁾Front

Right Part No. ⁽¹⁾Front

Sensor Link

Riding Height ⁽²⁾Change In. (mm)

+1 (Green)

+.24 (6)

-1 (Red)

-.24 (6)

Nominal (Blue)

+2 (Yellow)

+.47 (12)

EA -

-2 (White)

-.47 (12)

⁽¹⁾	All part numbers are preceded by E80F-3C111-.

⁽²⁾	Riding height change is with respect to nominal link.

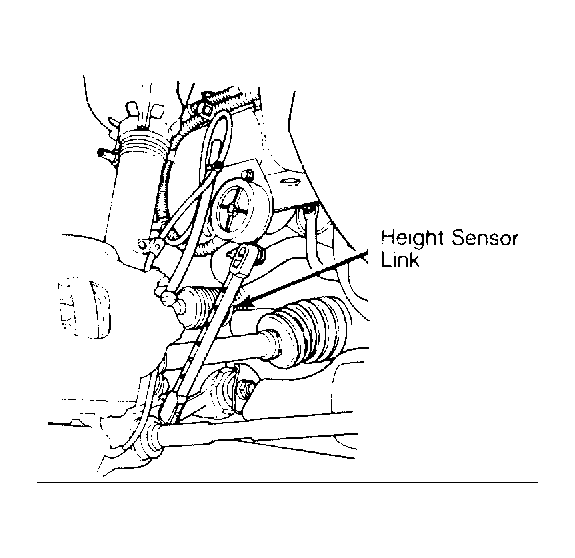

Fig 1: Front Height Sensor Link ID (Continental)

Courtesy of FORD MOTOR CO.
