Engine Controls - Tests W/Codes - 2.9L
>>
Diagnostic Trouble Code (DTC) Reference Charts
>>
Diagnostic Trouble Code (DTC) 2-Digit Reference Charts
Diagnostic Trouble Code (DTC) 2-Digit Reference Charts

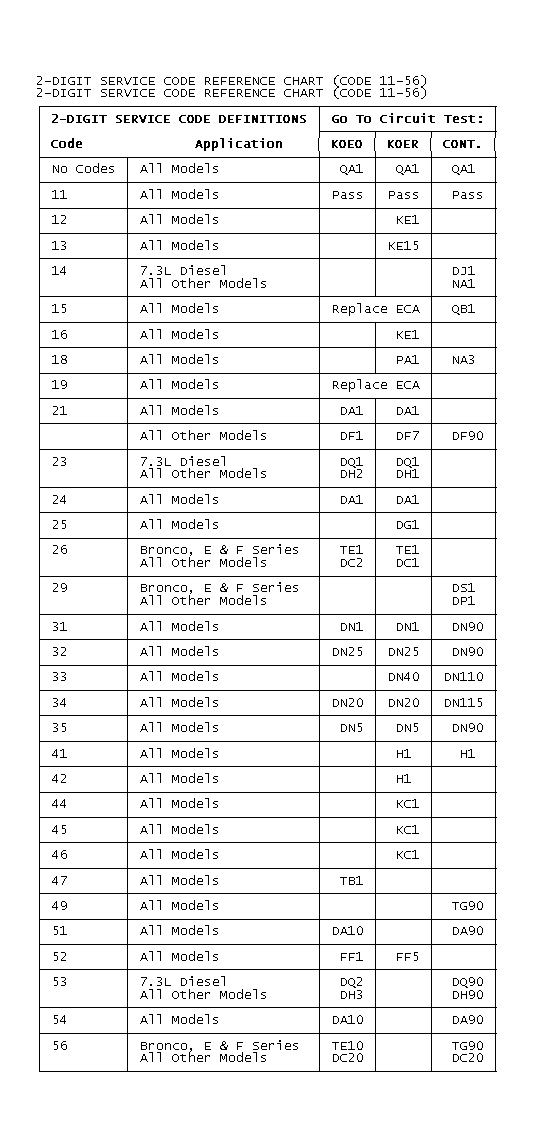

Fig 1: DIAGNOSTIC TROUBLE CODE (DTC) REFERENCE CHART (CODE 11-56)

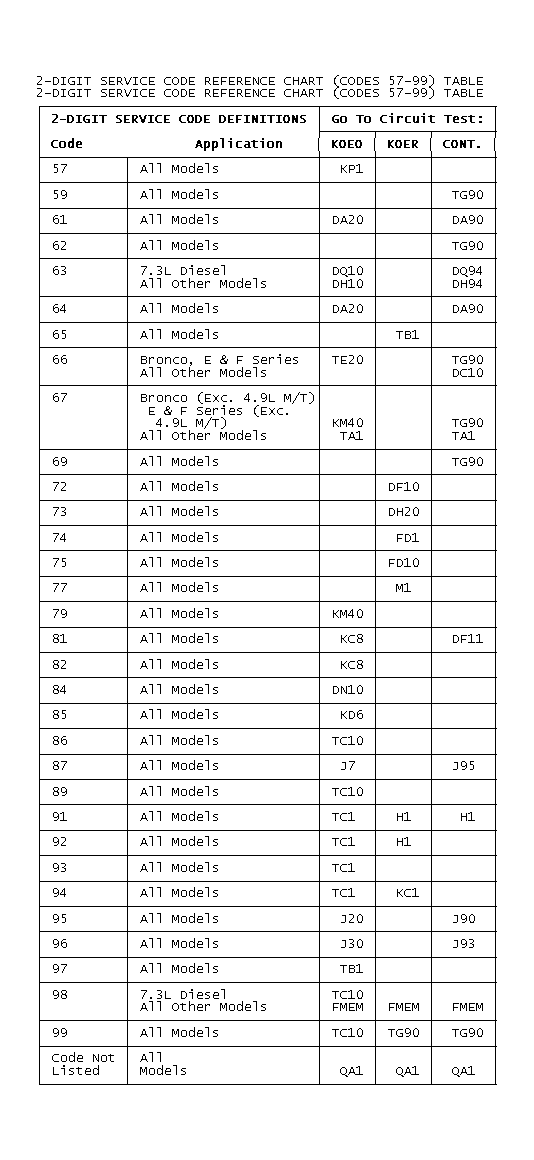

Fig 2: DIAGNOSTIC TROUBLE CODE (DTC) REFERENCE CHART (CODES 57-99)
