Steering System - Variable Assist: Wiring Diagram

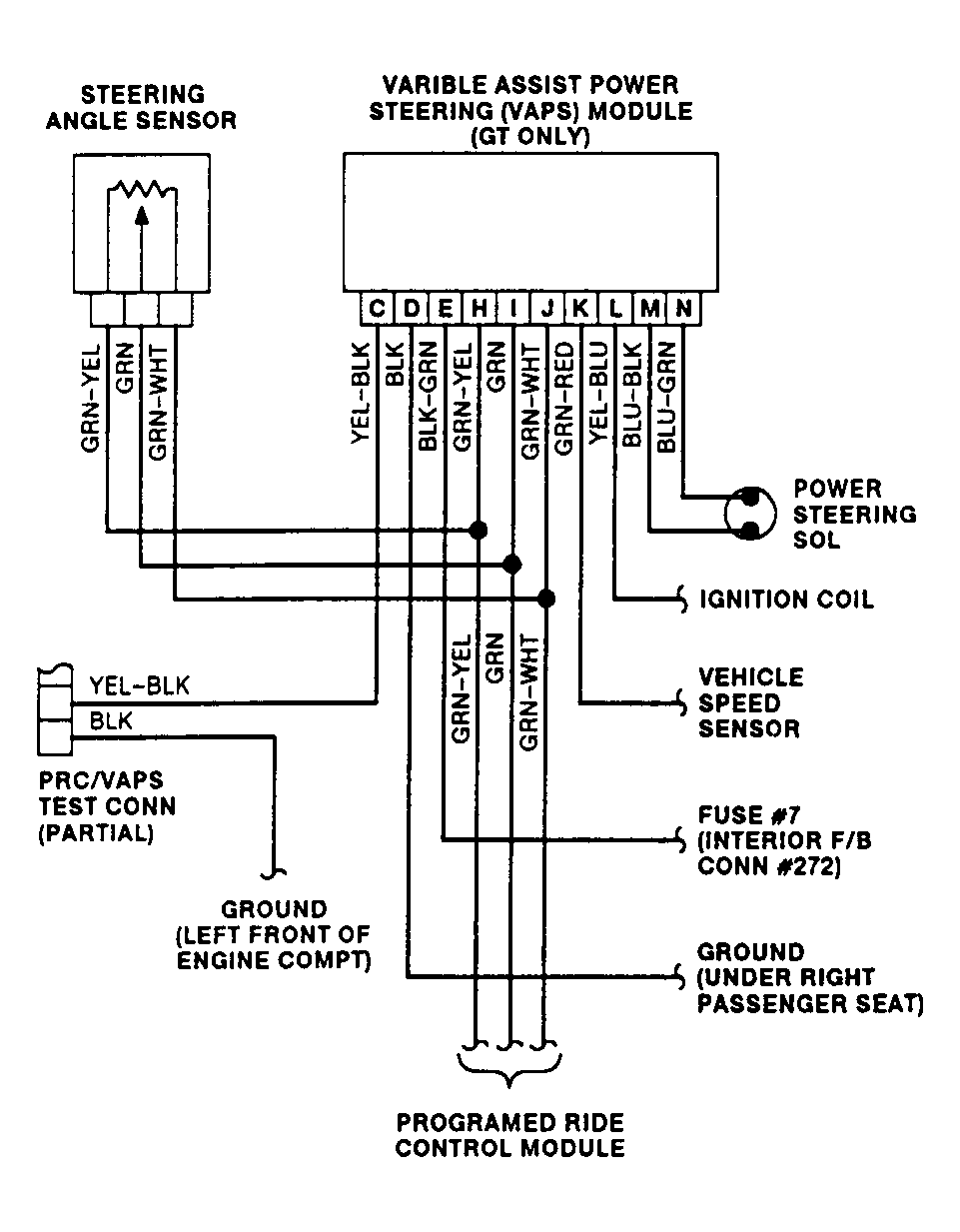

Fig 1: Variable Assist Power Steering (VAPS) Wiring Diagram (Probe)

G92F03992

Courtesy of FORD MOTOR CO.
