Power Seat Assembly: Removal

CAUTION: Use care when handling seat and track assembly. Dropping assembly or sitting on seat when not secured in vehicle may result in damaged components.
  1. Remove the screws from the four seat track access covers and remove the access covers. See Fig 1 .
  2. Remove the three bolts and one nut retaining the seat tracks to the vehicle floor.
  3. Lift the seat and disconnect the six-way power seat electrical connector. Remove the seat assembly from the vehicle.

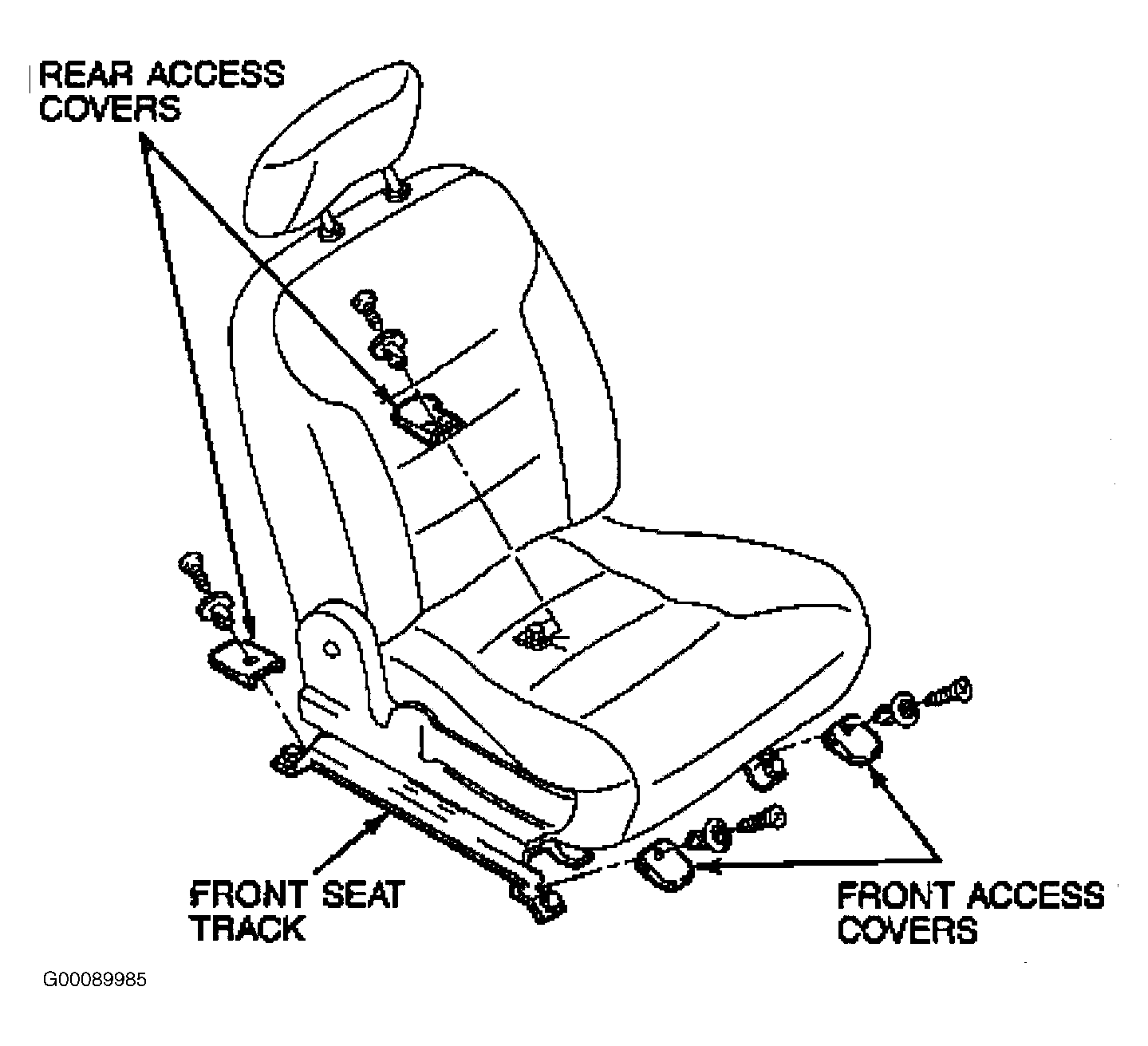

Fig 1: Removing Power Seat Assembly Seat Track Access Covers
G00089985Courtesy of FORD MOTOR CO.
