Manual Control Panel System
- Position function control lever in defrost symbol position. Remove driver sound deadening panel. Disconnect function control lever cable, located on left side of heater case assembly, from cable housing brace.

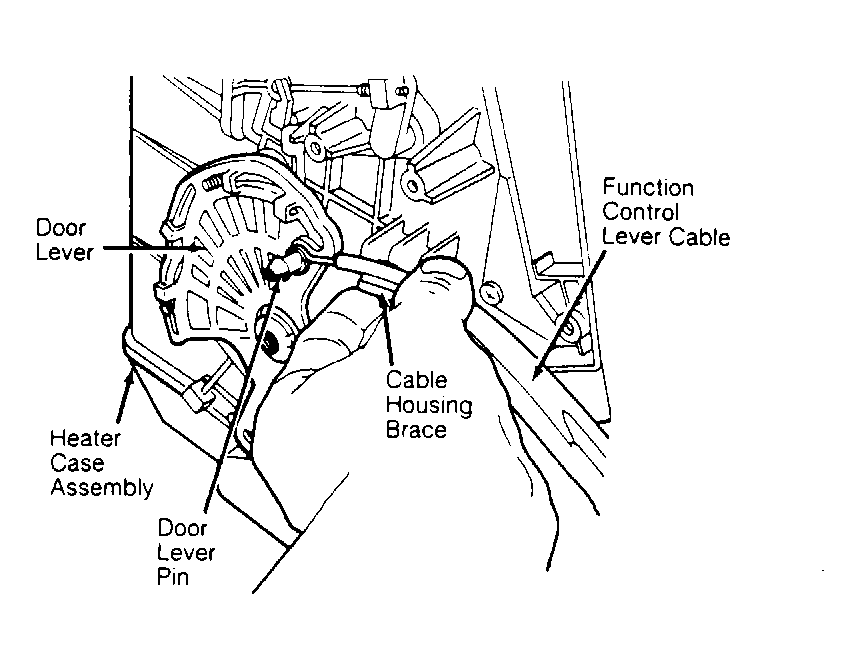

- With cable-end on door lever pin, push door lever down to its extreme stop. See Fig 1 . Secure function control lever cable into cable housing brace. Check for proper operation. Install driver sound deadening panel.
