RM5: Check Remote Control Mirror Supply

Check for 12 volts on the Blue/Yellow wire at the remote control mirror switch. See Fig 1 . Is there 12 volts? If yes, see RM6: Check Remote Control Mirror Ground  . If no, repair the Blue/Yellow wire between the CIGAR fuse and remote control mirror switch.

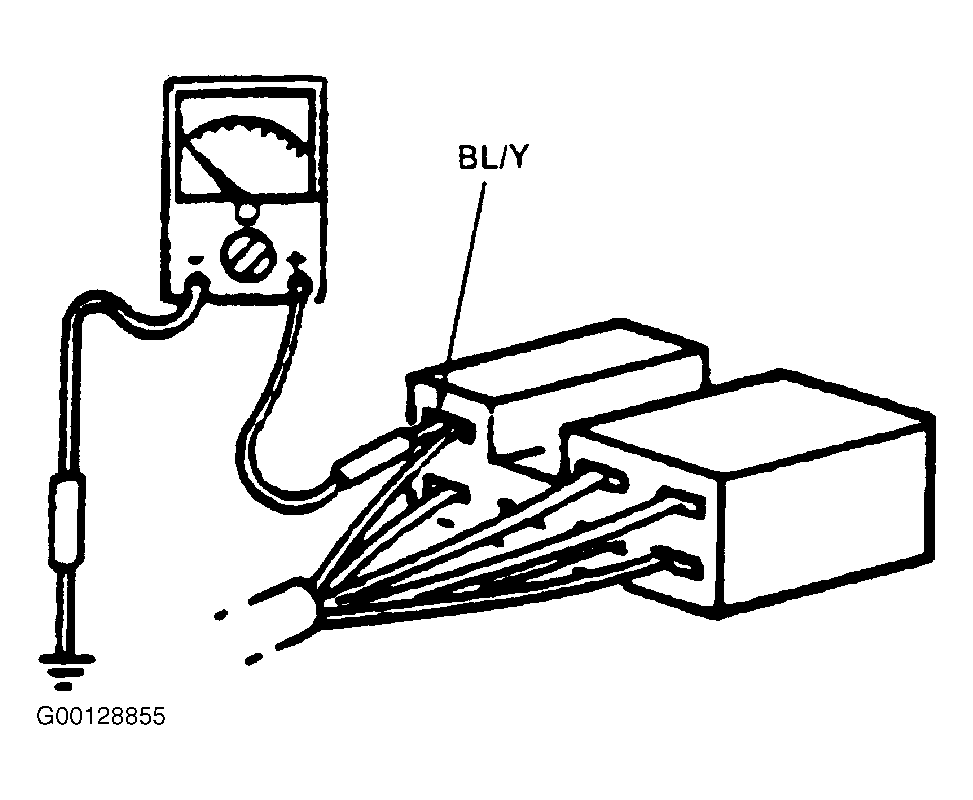

Fig 1: Checking Remote Control Mirror Power Supply
G00128855Courtesy of FORD MOTOR CO.
